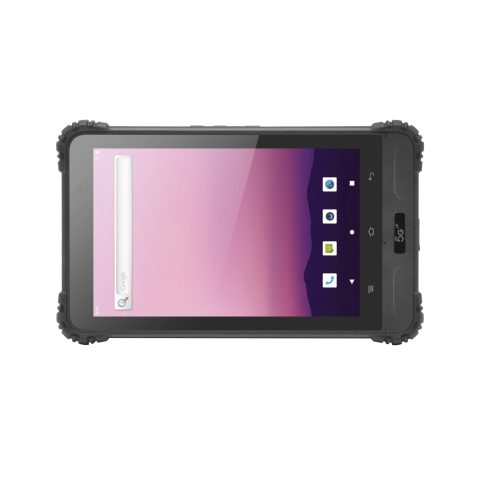

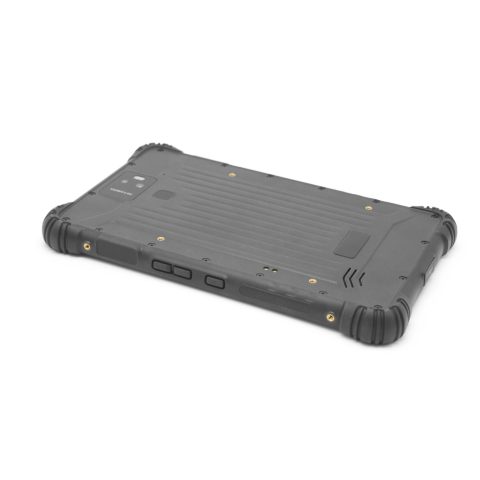

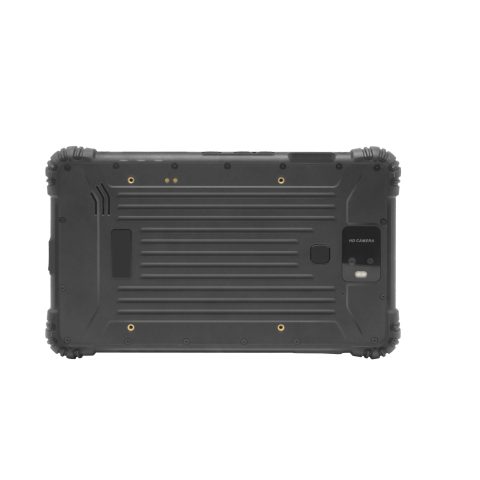

TPC-GS0891
Features
- 8" Android 5 G industrial rugged tablet
- Chipset: MTK MT6853 Octa core CPU, 2GHz
- Dual channel WiFi (2.4 GHz+5 GHz)
- Bluetooth 5.1
- fingerprint reader and NFC, optional 2D scanner
- Slim design, Rugged Mobile Terminal
Specifications
Ordering Information
Downloads
Specifications
| 5 G Rugged Tablet | |
|---|---|
| Screen | 8 IPS LCD Gorilla Glass 3rd Gen; Hardness: 7H |
| Resolution | 800*1280 |
| Brightness | 450 cd/m2 (800 cd/m2 Optional) |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Carrier Support | SA+NSA, 5G/4G/3G/2G |
| Network Frequency | 5G: N1/3/41/77/78/79, GSM: B2/3/5/8, CDMA: BC0/BC1, WCDMA: B1/2/5/8, TDS: B34/39, TDD: B34/B38/B39/B40/B41, FDD: B1/3/5/7/8/20/28A/28B |
| Chipset | MTK MT6853 Octa-core CPU, 2GHZ |
| RAM | 8 GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | 128 GB |
| Power | |
| Power Supply | 5V DC (Standard 5V/3A adapter) |
| Battery | 10500 mAh, 3.8V |
| O/S | |
| O/S | Android 10 |
| Camera | |
| Camera | 8 MP front, 20 MP back |
| Flash Light | |
| Flash Light | Support |
| I/O Port | |
| USB | 1*USB 2.0 Type A/ 1*USB 2.0 Type C |
| Ethernet | N/A |
| COM | N/A |
| WIFI | 802.11(a/b/g/n/ac), support 2.4GHZ+5GHZ |
| Audio | Speaker/MIC/3.5mm earphone |
| Display | 1*Mini HDMI |
| Bluetooth | 5.1 (BLE) class1 transmission distance: 10 m |
| GPS | GPS+GLONASS+Beidou+Galileo |
| SD/TF | 1* Micro SD |
| Storage capacity expansion | Support NM memory card, up to 256GB |
| SIM | Dual SIM support 2G, 3G, 4G, 5G |
| NFC | NXP MSN10 NFC module, I²C Port,13.56MHZ |
| Fingerprint | supported |
| DC_IN | 1*PWR_IN |
| Pogo Pin | 1*Pogo Pin (12 Pin) |
| Extension | Optional: HF RFID/UHF RFID/NFC/GPS/1D/2D/CAN/ U-BLOX GPS/Fingerprint reader |
| Accessoires | |
| Pen | Capacitive pen, Hand strap optional |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP67 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | Standard: 240mm(L)*146mm(W)*18mm(H); Optional: 227mm(L)*142mm(W)*29.5mm(H) |
| Mounting size | VESA mounting 100 x 100 mm |
| Material | ABS+PC; TPU |
| Weight | 0.754 KG/1.2KG (NW/GW) |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| TPC-GS0891 | 5 G rugged tablet, 8″ LCD, Android 10 |
Downloads
| This product has no downloads. |
