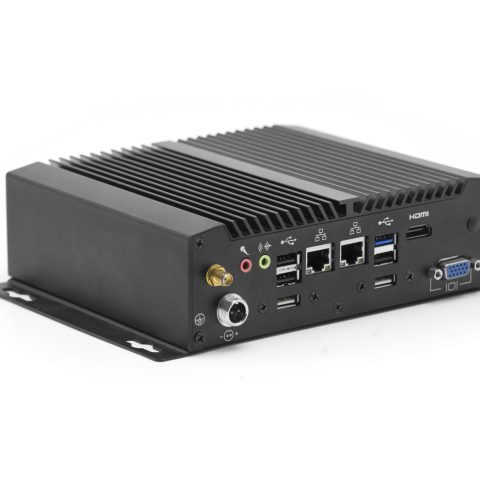

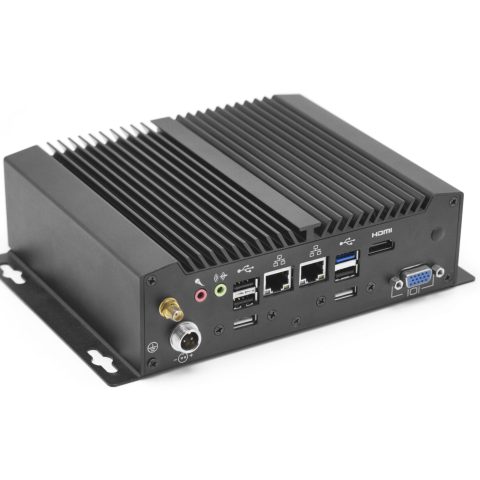

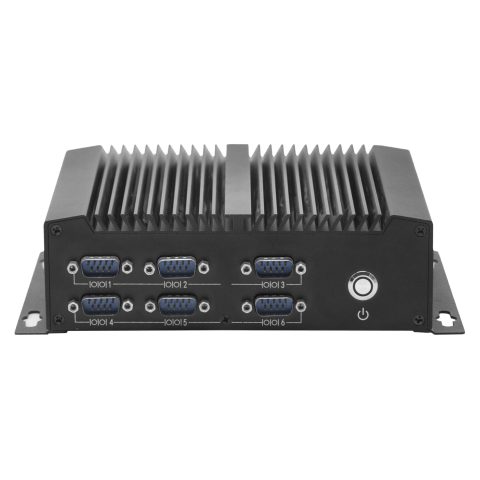

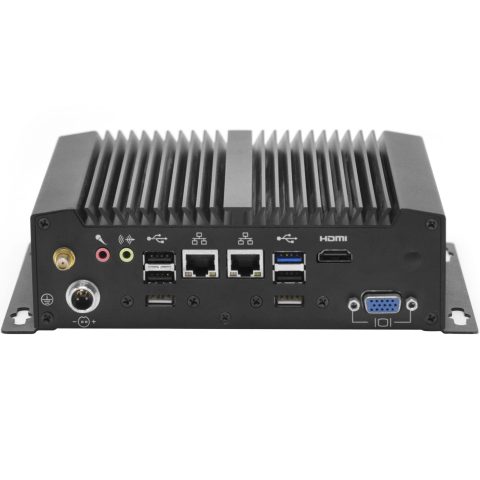

PC-GS317XA/PC-GS3151A
Features
- Intel® Celeron J1900 or Core 6th/7th I3/I5/ I7 processor
- 6*USB+6*COM port
- 2*Intel I211
- With 4GB DDR4 memory
- Color: Black
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Intel Celeron J1900 or Core 6th/7th I3/I5/I7 processor |
| RAM | J1900: 2GB DDR3, Max 8GB; 3855U/3865U/Core: 2GB DDR4, Max 16GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec By Software |
| Storage | SSD: Standard 64GB, Max 512GB |
| Power | |
| Power Supply | 9-24V DC(12V/5A adapter) |
| O/S | |
| O/S | Windows 10, Linux(J1900 also support Win 7) |
| I/O Port | |
| USB | J1900: 5*USB2.0+1*USB3.0; Core 6th/7th: 4*USB 3.0+2*USB 2.0 |
| Ethernet | 2*Intel 1000Mbps |
| COM | 6*RS232 |
| Audio | 1*Line-out+1*Mic-in |
| Display | 1*VGA +1*HDMI |
| GPIO | 4 in/out(occupy one DB9 port) |
| Extension | 1*Mini PCIe(WIFI/BT/3G/4G optional) |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～70℃(with air flow) |
| Storage Temperature | -30℃～80℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 180mm(L)x148mm(W)x55mm(H) |
| Material | High-strength and elegant Al-alloy, Fanless Design |
| Weight | 1.1Kg/1.3Kg(NET/Gross) |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| PC-GS3151A | J1900/2G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3171A | 3855U/2G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3172A | 3865U/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3173A | 6th Gen I3/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3175A | 6th Gen I5/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3177A | 6th Gen I7/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3174A | 7th Gen I3/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3176A | 7th Gen I5/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
| PC-GS3178A | 7th Gen I7/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A |
