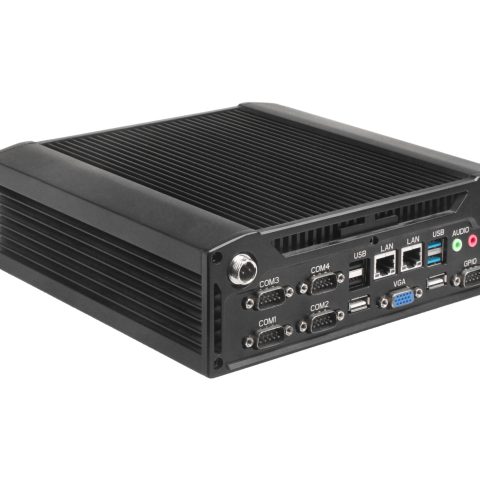

PC-GS507XA/PC-GS5052A

Specifications

Ordering Information

Downloads

Specifications

Performance
Chipset	Intel Celeron J1900/3855U/3865U/Core I3/I5/I7
RAM	J1900: 2GB DDR3, Max 8GB; 3855U/3865U/Core: 2GB DDR4, Max 16GB
Hardware Monitor	Voltage CPU, Temperature Monitoring
Watchdog Timer	0-255 sec By Software
Storage	SSD: Standard 64GB, Max 512GB
Power
Power Supply	9-24V DC(12V/5A adapter,9-36V optional)
O/S
O/S	Windows 10, Linux(J1900 also support Win 7)

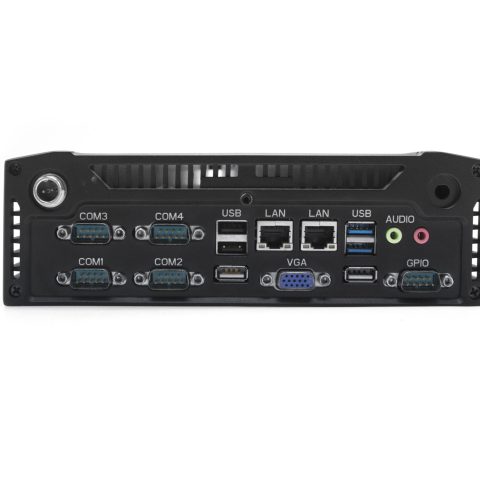

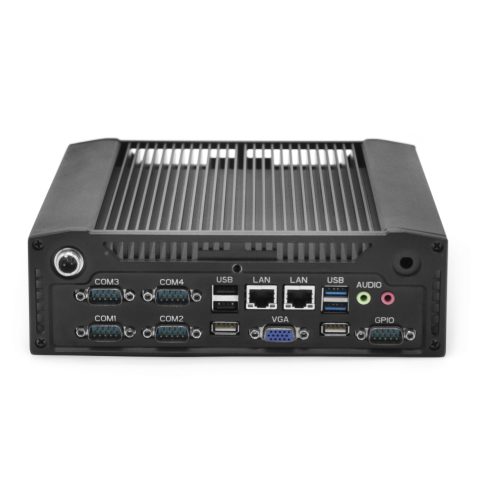

I/O Port
USB	J1900: 5USB2.0+1USB3.0; Core 6th/7th: 4USB 3.0+2USB 2.0
Ethernet	2*Intel 1000Mbps
COM	6RS232(1-2RS485/422 optional)
Audio	1Line-out+1Mic-in
Display	1VGA +1HDMI
Extension	1*Mini PCIe(WIFI/BT/3G/4G optional)
Environmental
Anti-vibration	5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock	10g acceleration, 11ms duration
Reliability	MTBF≥5000h; MTTR≤0.5h
Operating Temperature	-20℃～70℃(with air flow)
Storage Temperature	-30℃～80℃
Operating Humidity	95% @40℃, non-condensing
Mechanical
Dimensions	211.5mm(L)x200mm(W)x67mm(H)
Material	High-strength and elegant Al-alloy, Fanless Design
Weight	2.6Kg/4.0Kg(NET/Gross)
Color	Black

Ordering Information

Type	Description
PC-GS5052A	J1900/2G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5071A	3855U/2G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5072A	3865U/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5073A	6th Gen I3/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5075A	6th Gen I5/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5077A	6th Gen I7/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5074A	7th Gen I3/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5076A	7th Gen I5/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
PC-GS5078A	7th Gen I7/4G/64G/6USB/6RS232/2LAN/VGA/HDMI/12V5A
