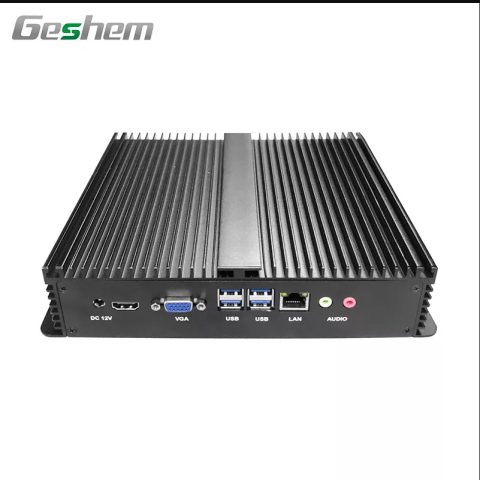

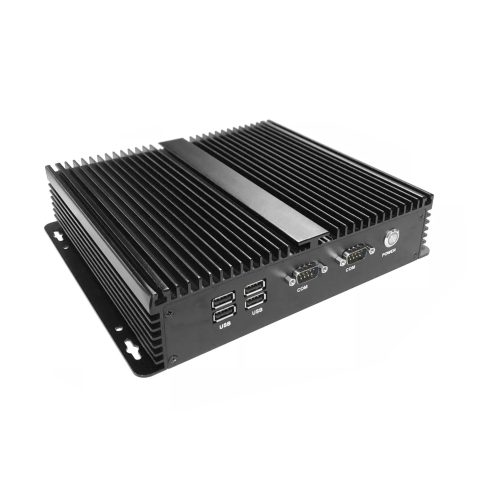

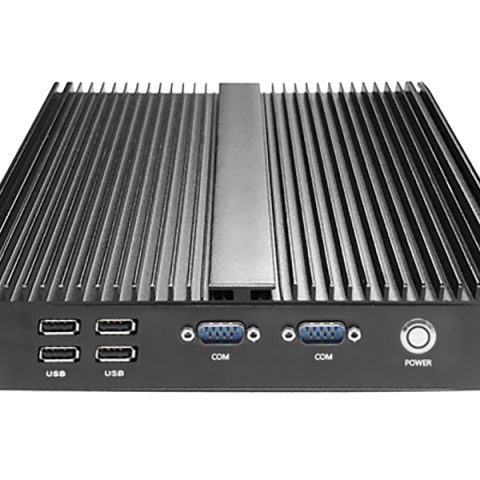

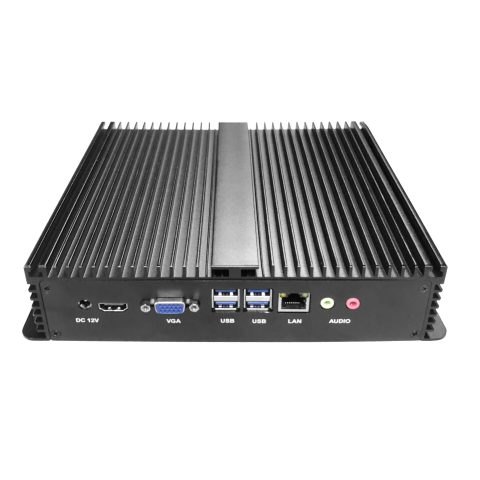

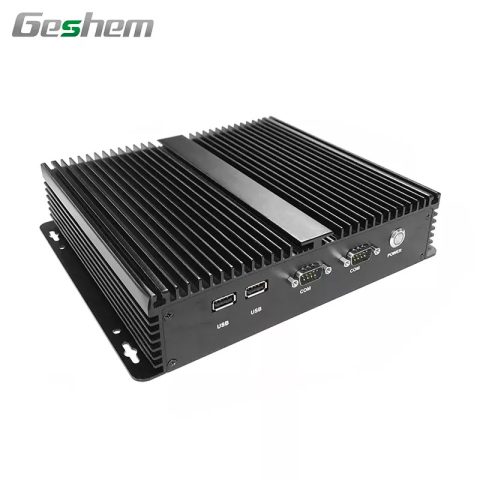

PC-GS5083B
Features
- Onboard Intel®Celeron 8145U/8365U/8565U Core 8 Gen I3/I5/I7 Processor
- 4GB DDR4, up to 16GB
- 4*USB 2.0+4*USB 3.0 / 2* RS232
- 2*Intel I211AT(4*POE-802.3af)

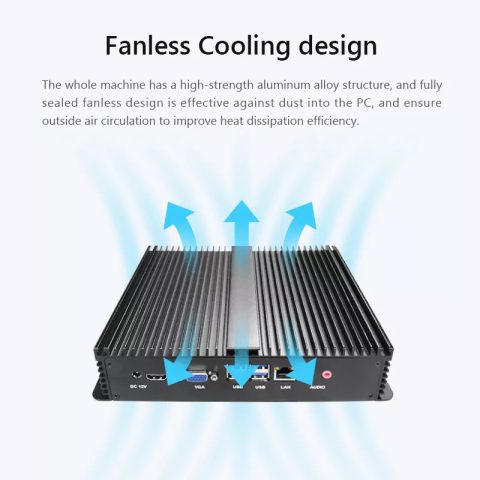

- Fanless High-strength and elegant Al-alloy case Design
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Onboard Intel Celeron 8145U/8365U/8565U Core 8 Gen I3/I5/I7 Processor |
| RAM | 4GB DDR4, Max 16GB |
| Hardware Monitor | Voltage & CPU Temperature Monitoring |
| Watchdog Timer | 0-255 sec By Software |
| Storage | MSATA: Standard 256GB, Max 512GB |
| Power | |
| Power Supply | 9-36V DC(12V/5A adapter) |
| O/S | |
| O/S | Windows 7/10、Linux |
| I/O Port | |
| USB | 4*USB2.0 +4*USB 3.0 |
| Ethernet | 1*Intel I211AT Gigabit network interface |
| COM | 2*RS2323 |
| Audio | 1*Line out, 1*Mic in |
| Display | 1*VGA, 1*HDMI |
| GPIO | 1* in/out |
| Extension | 1*Mini PCIe( |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～60℃(with air flow) |
| Storage Temperature | -40℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 214mm(L)x220mm(W)x55mm(H) |
| Material | Aluminium alloy fanless design |
| Weight | 2.8Kg/4.1Kg(NET/Gross) |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| PC-GS5083B-1 | I3-8145U/4G/2569G/8USB/2RS232/1LAN/VGA/HDMI/12V5A |
| PC-GS5083B-2 | I3-8145U/4G/2569G/6USB/2RS232/2LAN/VGA/HDMI/12V5A |
Downloads
| This product has no downloads. |
