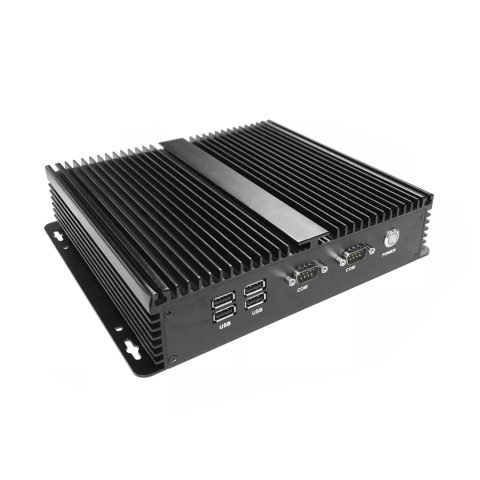

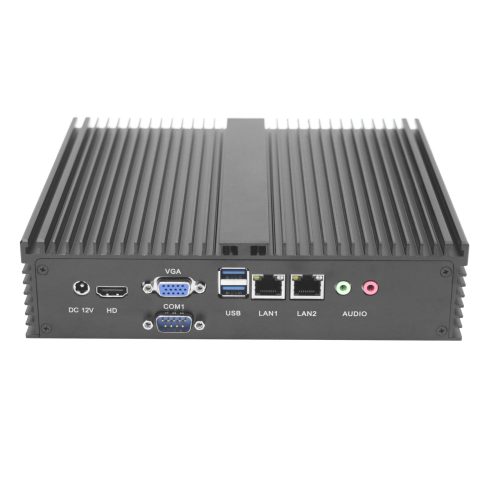

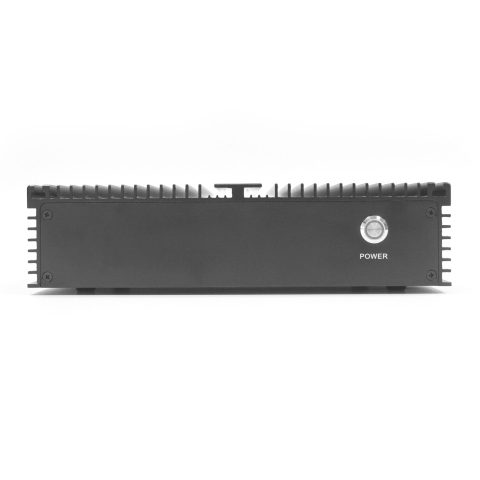

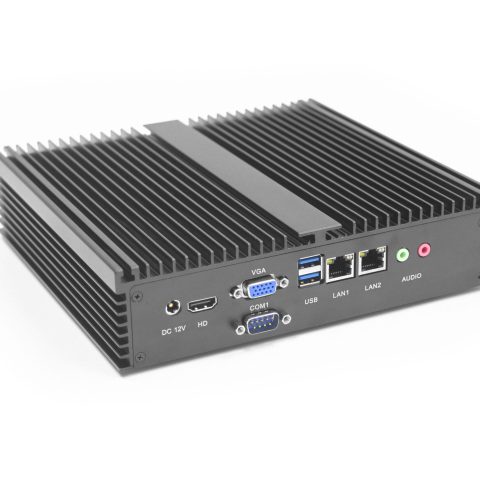

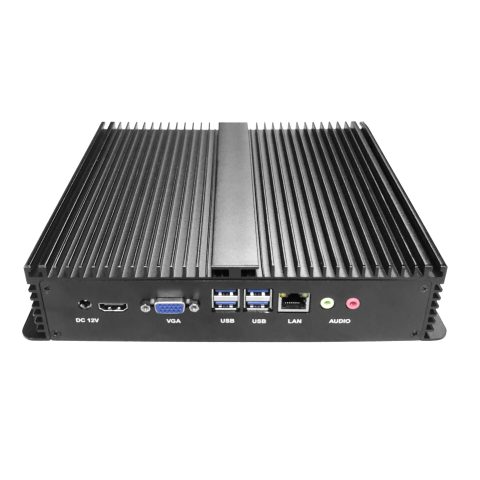

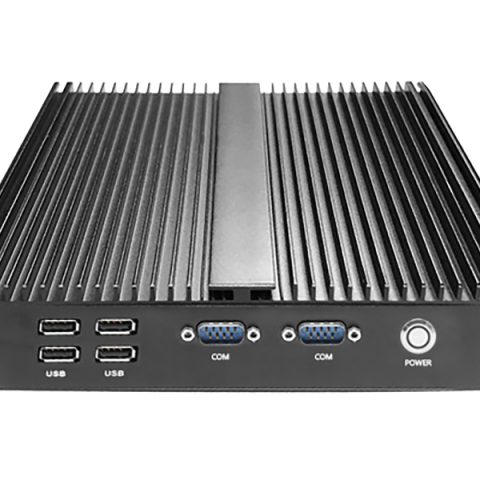

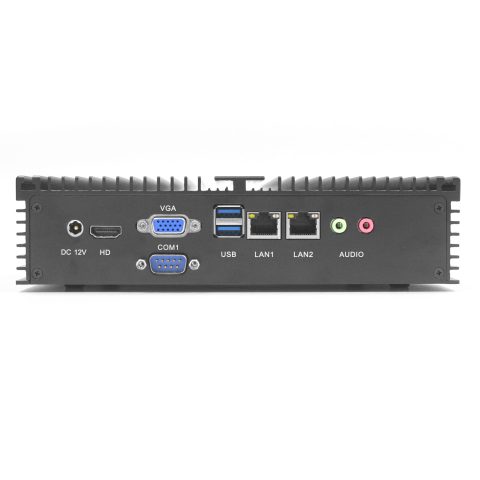

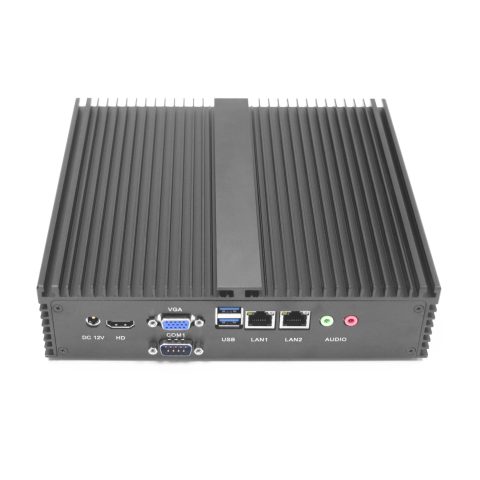

PC-GS5085
Features
- Onboard Intel®Celeron 8365U Core 8 Gen I5Processor
- 4GB DDR4, up to 16GB
- 2*USB 2.0+4*USB 3.0 / 6* RS232
- 2*Intel I211AT(4*POE-802.3af)
- Fanless High-strength and elegant Al-alloy case Design
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Onboard Intel Celeron 8365U Core 8 Gen I5Processor |
| RAM | 4GB DDR4, Max 16GB |
| Hardware Monitor | Voltage & CPU Temperature Monitoring |
| Watchdog Timer | 0-255 sec By Software |
| Storage | MSATA: Standard 256GB, Max 512GB |
| Power | |
| Power Supply | 9-36V DC(12V/5A adapter) |
| O/S | |
| O/S | Windows 7/10、Linux |
| I/O Port | |
| USB | 2*USB2.0 +4*USB 3.0 |
| Ethernet | 2*Intel I211AT Gigabit network interface |
| COM | 6*RS2323 |
| Audio | 1*Line out, 1*Mic in |
| Display | 1*VGA, 1*HDMI |
| GPIO | 1* in/out |
| Extension | 1*Mini PCIe |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～60℃(with air flow) |
| Storage Temperature | -40℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 211,5mm(L)x196mm(W)x67mm(H) |
| Material | Aluminium alloy fanless design |
| Weight | 2.44Kg/4.1Kg(NET/Gross) |
| Color | Black |
