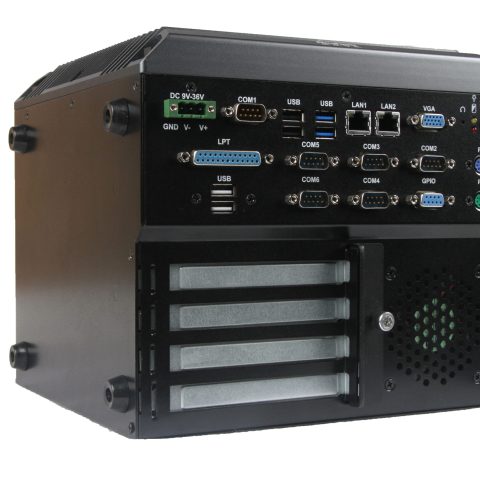

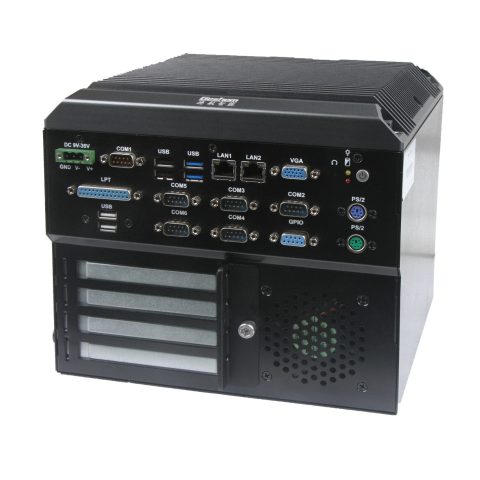

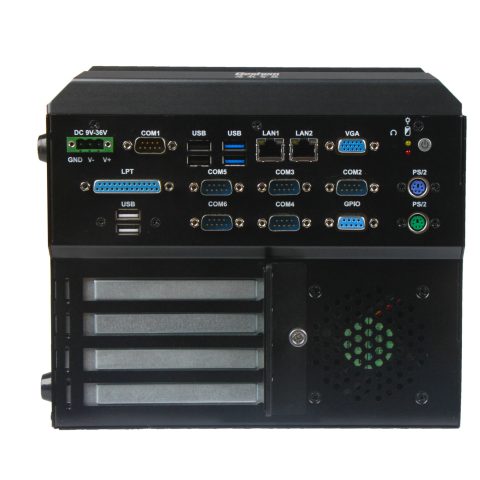

PC-GS6065P4
Features
- Chipset:Intel® H81 Express Chipset, 4th Generation Intel® Core processors
- OS:Windows 7/10, Linux
- Memory:4GB DDR3/MAX 16GB
- 4*USB2.0+2*USB3.0; 6*RS232
- 1*MINI PCIe, 1*PCIex16, 3*PCI
- Al-alloy, Fanless design
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Intel H81 Express Chipset 4th Generation Intel® Core processors |
| RAM | 4GB DDR3 SO-DIMM, Max 16GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD: Standard 64GB, Max 512GB |
| Power | |
| Power Supply | 9-36V DC |
| O/S | |
| O/S | Windows 7/10, Linux |
| I/O Port | |
| USB | 4*USB 2.0+2*USB3.0 |
| Ethernet | 2*Intel 1000Mbps |
| COM | 6*RS232 (1-2*422/485 optional) |
| Display | 1*VGA |
| GPIO | 4 in/out |
| Extension | 1*Mini PCIe, 1*PCIex16, 3*PCI |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～70℃ with air flow |
| Storage Temperature | -30℃～80℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 222mm(L)*235mm(W)*209mm(H) |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 3.5KG(NW)/4.5KG(GW) |
| Color | Black |
Ordering Information
| This product has no ordering information. |
Downloads
| This product has no downloads. |
