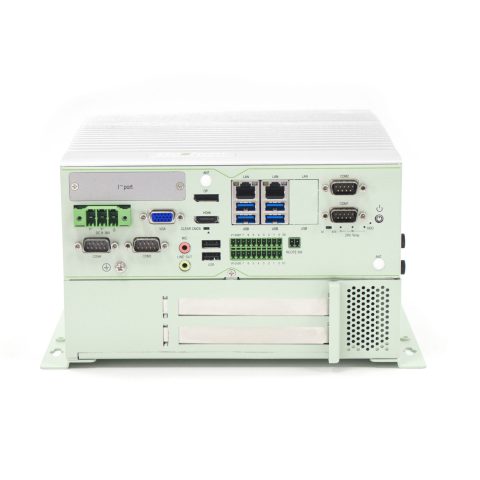

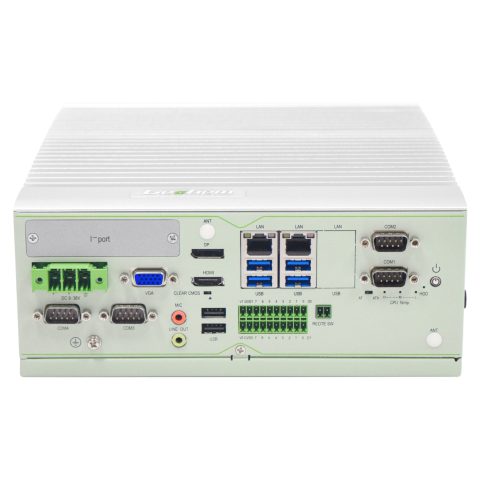

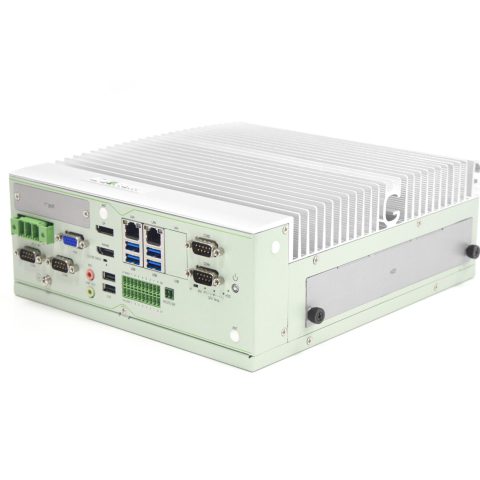

PC-GS6177A
Features
- Intel® 8/9th Gen. Coffee lake-R Core™ i7/i5/i3 /Pentium®/Celeron® LGA1151 CPU
- 2*DDR4 2400/2666MHz SODIMM, max 64GB
- Support VGA+HD+DP, 2+1 Display
- 1*M.2 E-Key 2230, support Gigabit WIFI module
- 2*SATA3.0 easy-swap hard drive cage, with both pull-out and shock-absorbing design,
- 1*full size Msata, with SIM card slot
- Support 1*PCIeX16+1*PCI expansion slot (optional 2*PCI)
- H310 Chipset
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Intel® H310 |
| RAM | 2*2.5″ SATA3 6.0Gbps HDD/SSD Simple Swap Hard Drive Rack 1*mSATA full size, with SIM card slot, support 4G and other wireless functions |
| Hardware Monitor | Intel® UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1 or PCIe X16 Graphics Display Interface (Half-Length) |
| Watchdog Timer | Programmable timeout interrupt or system reset, 1 to 255 seconds |
| Storage | MSATA: Standard 256GB, Max 512GB |
| Power | |
| Power Supply | 9-36V DC(12V/5A adapter) |
| O/S | |
| O/S | Windows* 10 Enterprise & IOT Enterprise、Ubuntu、SuSe、Redhat Enterprise 1,2 (Kernel 4.14) 、Wind River VxWorks 7 |
| I/O Port | |
| USB | 4*USB3.1 Type A, 2*USB2.0 Type A, 1*USB2.0 |
| Ethernet | 1*Intel® I210AT PCIe, Gigabit adaptive |
| COM | 2*RS232/422/485 and 2*RS232 DB9 male interface 16-bit isolated DIO (2*10pin phoenix terminal), 8*2.5KV optical isolation input (H: 5-24V, L: 0-1.5V), 8*2.5KV |
| Audio | 1*DP+1*HD+1*VGA, DP: 4096*2304@60Hz, VGA: 1900*1200@60Hz, HD: 4096*2160@24Hz |
| Video | 1*Audio-out & 1*MIC dual 3.5mm phone jack |
| GPIO | 1*Power SW, 1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW |
| Extension | 1*M.2 E-Key 2230, support Gigabit WIFI module 1*PCIe X16, 1*PCI (optional 2*PCI) I-port: optional USB2.0/16-bit DIO/serial port |
| Environmental | |
| Anti-vibration | 5grms/5~500Hz/random/working status (SSD); 1grms/5~500Hz/random/working status (HDD) |
| Anti-shock | 50g peak acceleration (lasting 11ms) (SSD); 20g peak acceleration (lasting 11ms) (HDD) |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -25～60℃, no fan, wide temperature SSD, air flow -10～55℃, no fan, normal temperature SSD, air flow |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10~90%@40°C, no condensation |
| Mechanical | |
| Dimensions | 262*230*143.09mm |
| Material | Aluminum rectangular profile heat dissipation shell, SGCC box |
| Weight | 7.5kg (two expansions) |
| Color | silver + green |
