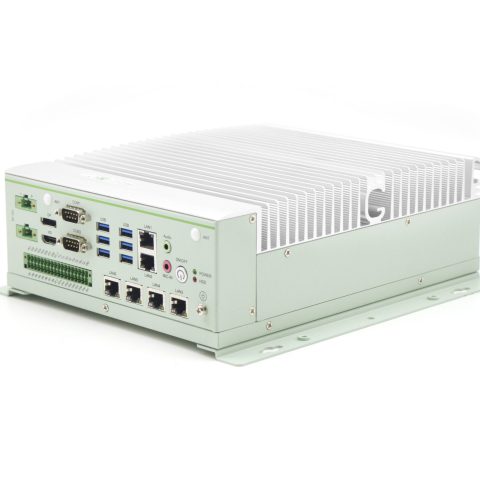

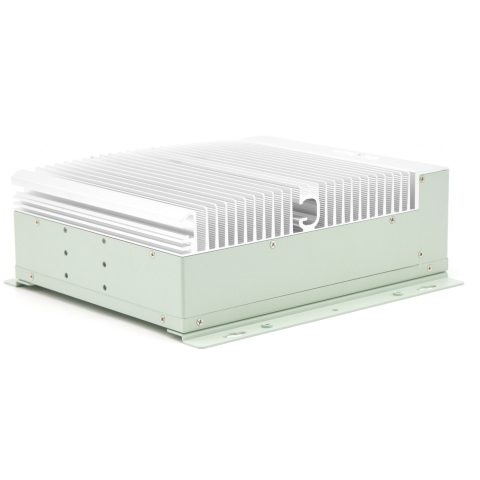

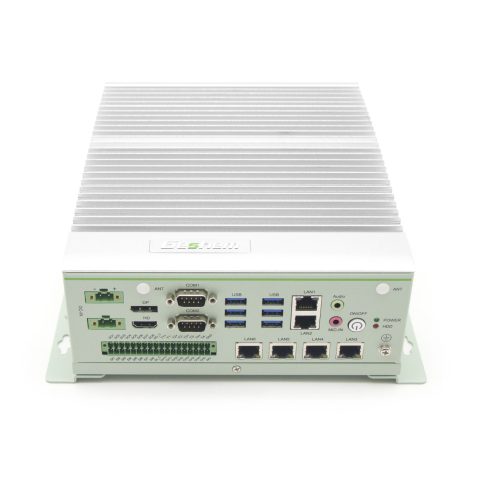

PC-GS6277A
Features
- Intel® 12th/13th Core ™ i3/i5/i7 series or Pentium®, Celeron® series desktop processor
- Intel® H610
- 2*DDR4 3200MHz Sodimm, maximum 64GB
- Support HD+DP, 2+1 display
- 1*m.2 E-key 2230, supports Gigabit WIFI module
- 2*SATA3.0 Easy to insert hard disk frame
- 1*full size MSATA, with SIM card slot
- SUPPORTS DIRECTX11.1, OpenGL 5.0 and OpenCl 2.1 or PCIe X16 graphics display interface (half long)
Specifications
Ordering Information
Downloads
Specifications
| Performance | |
|---|---|
| Chipset | Intel® H610 |
| Memory | 2*DDR4 3200MHz Sodimm, maximum 64GB |
| Graphics | Intel® UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1 or PCIe X16 Graphics Display Interface (Half-Length) |
| Watchdog Timer | Programmable timeout interruption or system reset, 1 to 255 seconds |
| Storage | 2*2.5 “SATA3 6.0Gbps HDD/SSD easy inserting hard disk frame 1*m.2 2280 m-key (supports SATA/PCIE-X4) |
| Power | |
| Power Supply | DC in 18 ~ 36V, 2*2pin lock -to -threaded |
| O/S | |
| O/S | Support Win10/Win11 and various versions of linux versions of operating systems |
| I/O Port | |
| USB | 6 USB3.0 interfaces, 2 USB2.0 (built -in) |
| Ethernet | 6*RJ45 Gigabit network port, LAN1 uses Intel® I225LM network card chip, LAN2 uses Intel® i211AT network card chip, of which LAN3 ~ 6 supports the POE 802.3AF standard. |
| COM | 2*RS232, you can select RS232/485/422 mode through BIOS |
| Audio | 1*DP1.2 (maximum output resolution: 7680×4320 @ 60Hz) 1*HD 2.0B (maximum output resolution: 4096×2160@60Hz) |
| Video | 1*Audio-OUT & 1*MIC dual 3.5mm Phone Jack interface |
| GPIO | 8DI*8DO, Four Road Light Source Output |
| Extension | 1*M.2 2230 E-Key (supports wifi+Bluetooth) 1*M.2 3042/52 B-Key (4G/5G module), with the SIM card slot |
| Environmental | |
| Anti-vibration | 5grms/5~500Hz/random/working status (SSD); 1grms/5~500Hz/random/working status (HDD) |
| Anti-shock | 50g peak acceleration (lasting 11ms) (SSD); 20g peak acceleration (lasting 11ms) (HDD) |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -25～60℃, no fan, wide temperature SSD, air flow -10～55℃, no fan, normal temperature SSD, air flow |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10~90%@40°C, no condensation |
| Mechanical | |
| Dimensions | 262*205*87.69mm |
| Material | Aluminum rectangular material heat dissipation shell, SGCC box body |
| Weight | 4.5kg |
| Color | Silver white+green |
