PPC-GS0792T
Features

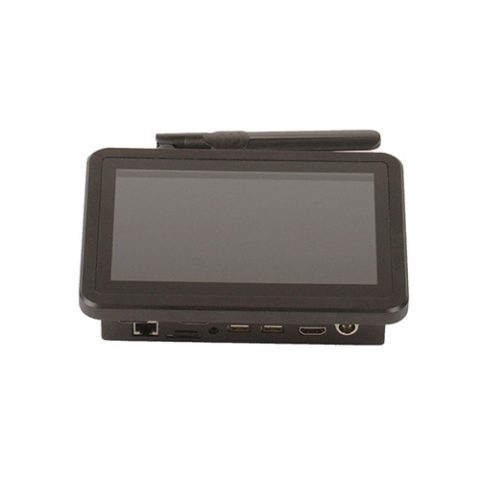

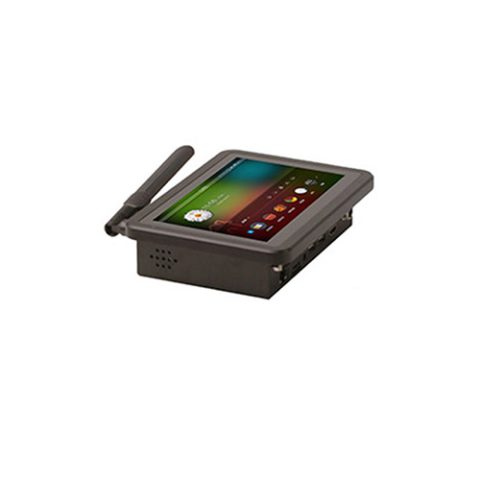

- 7" Multi-Point capacitive touch screen
- Chipset: RK3288 SoC Cortex-A17 Quad Core @ 1.8GHz Max
- Onboard 2GB EMMC (4GB optional MOQ required)

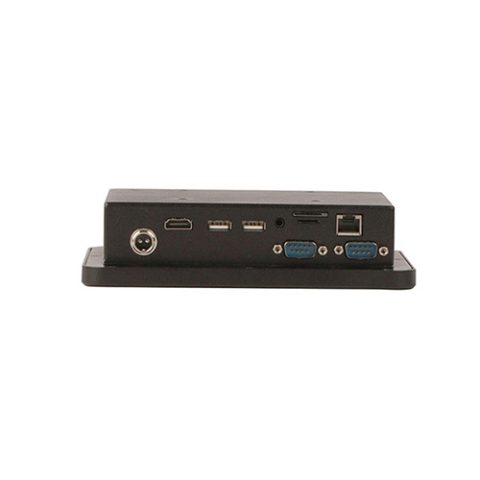

- Provide 2*USB+2*COM port
- Support 1*1000M LAN port
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 7 TFT LCD |
| Resolution | 800*480 |
| Brightness | 400 cd/m2 |
| Touchscreen | Capacitive touch screen |
| Performance | |
| Chipset | RK3288 SoC Cortex-A17 Quad Core @ 1.8GHz Max |
| RAM | On board 2GB EMMC (4GB optional MOQ required) |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | 8GB NAND Flash |
| Power | |
| Power Supply | 12V DC (with adapter) |
| O/S | |
| O/S | Android 5.1.1 |
| I/O Port | |
| USB | 2*USB 2.0 |
| Ethernet | 1*1000M LAN |
| COM | 2*RS232 (1*RS485 optional) |
| Audio | 1*Line-out/In |
| Display | 1*HDMI |
| SD/TF | 1*TF card slot (up to 64GB) |
| SIM | 1*SIM card slot |
| MiniPCIe | 1*MiniPCIe(optional 3G/4G ) |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -20℃～60℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 186mm(L)*135mm(W)*45.5mm(H) |
| Mounting size | VESA mounting: 75*75mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 1.11kg/1.61kg(NET/Gross) |
| Color | Black |
