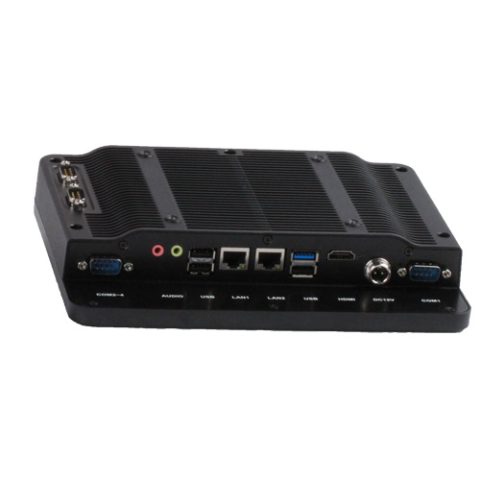

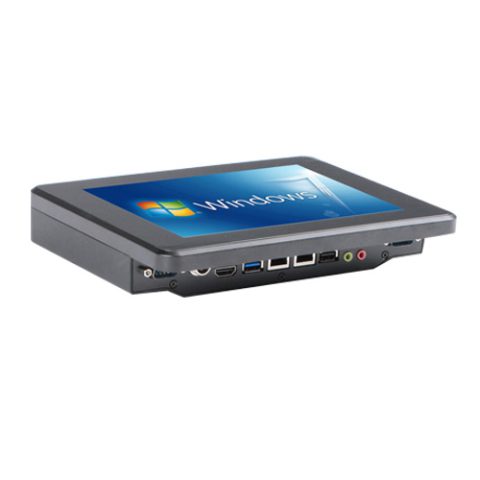

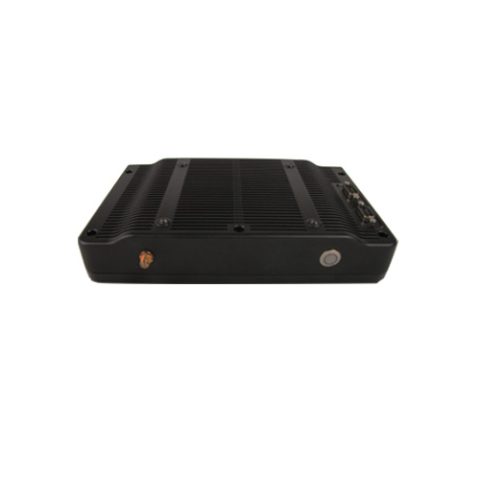

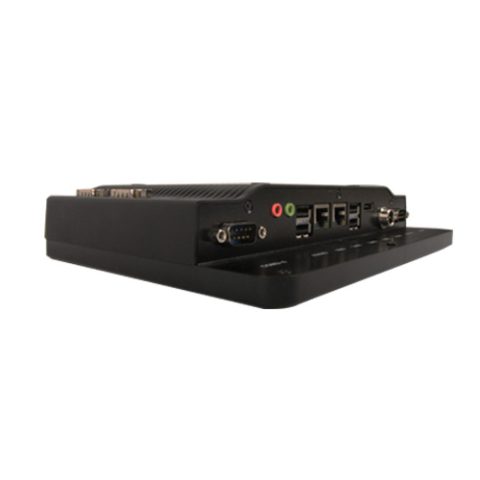

PPC-GS0851T-JK4
Features
- 8" Resistive touch screen( capacitive screen Optional), Front panel IP65
- Chipset:Intel® Celeron® J1900 processor
- 2GB DDR3 RAM,up to 8 GB
- Provide 4*USB+4*COM port
- 2*1000M RJ45 LAN
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 8 TFT LCD |
| Resolution | 800*600 |
| Brightness | 300 cd/m2 |
| Contrast | 500:1 |
| Touchscreen | Resistive touch screen ( capacitive screen Optional) |
| Performance | |
| Chipset | Intel® Celeron® J1900 Processor |
| RAM | 2GB DDR3 up to 8GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD: Standard 32GB, up to 512G |
| Power | |
| Power Supply | 9-24V DC |
| O/S | |
| O/S | Windows 7, Windows 10, Linux |
| I/O Port | |
| USB | 3*USB 2.0+1*USB3. |
| Ethernet | 2*1000M LAN |
| COM | 4*RS232 |
| Audio | 1*Line-out+1*Mic |
| Display | 1*HDMI |
| MiniPCIe | 1*MiniPCIe(optional WIFI/3G/4G) |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～60℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 220mm(L)*172mm(W)*43.5mm(H) |
| Mounting size | VESA mounting: 100*100mm |
| Material | Fanless High-strength and elegant Al-alloy panel+PPS |
| Weight | 1.2kg/2.5kg(NET/Gross) |
| Color | Black |
Ordering Information
| This product has no ordering information. |
Downloads
| This product has no downloads. |
