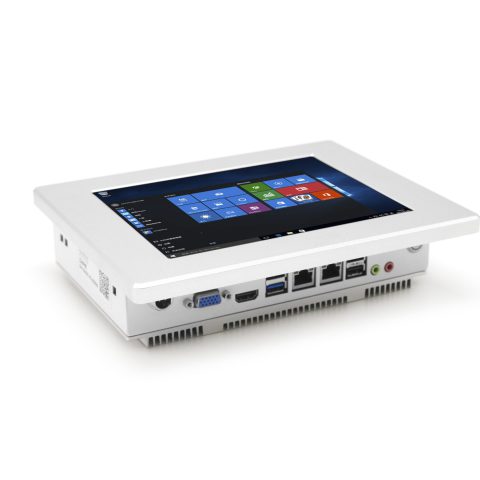

PPC-GS0851TA/PPC-GS087XTA
Features
- 8" Resistive touch screen, Front panel IP65 optional
- Chipset: Intel® Celeron J1900/3855U/ 3865U/Core I3/I5/I7
- RAM: DDR3/DDR4 2GB, up to 16GB
- Provide 4*USB+4*COM port
- 2*1000M LAN port
Specifications
Ordering Information
Downloads
Specifications

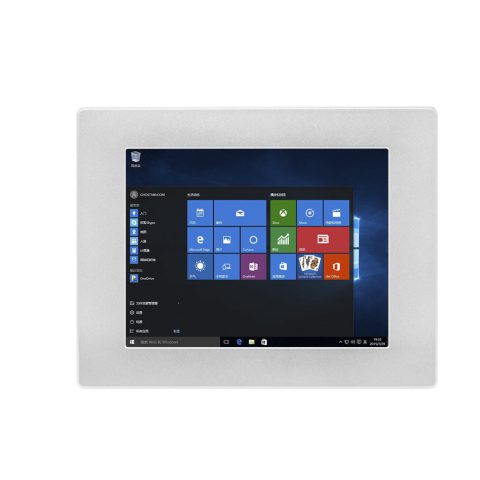

| Display | |
|---|---|
| Screen | 8 TFT LCD |
| Resolution | 800*600 |
| Brightness | 300 cd/m2 |
| Contrast | 400:1 |
| Touchscreen | 5-wire Resistive touch screen |
| Performance | |
| Chipset | Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7 |
| RAM | J1900 DDR3 2GB, up to 8GB; 3855U/3865U/Core i3/i5/i7 DDR4 2GB, up to 16GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD 64GB, up to 512GB |
| Power | |
| Power Supply | 9-24V DC(9-36V optional) |
| O/S | |
| O/S | Windows 10, Linux (J1900 supports Windows 7) |

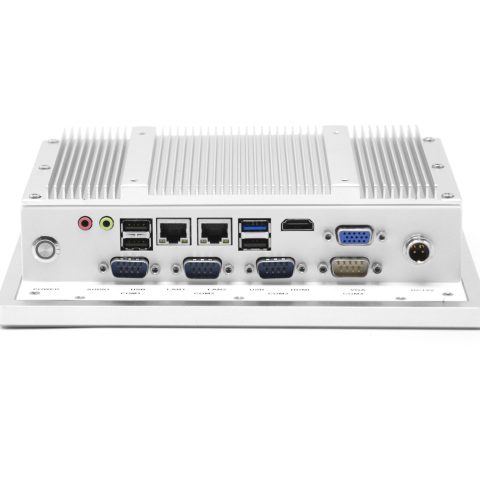

| I/O Port | |
| I/O Port | J1900: 3*USB2.0+1*USB3.0; 3855U/3865U/Core 6th/7th: 4*USB 3.0 |
| Ethernet | 2*1000M LAN |
| COM | 4*RS232 (1~2*RS485/RS422 optional) |
| Audio | 1*Line-out+1*Mic |
| Display | 1*VGA, 1*HDMI |
| MiniPCIe | 1*MiniPCIe(optional WIFI/3G/4G) |
| GPIO | 1*4 in/4 out(optional, occupy one COM port) |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65(optional) |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -20℃～60℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 228mm(L)*178mm(W)*60.8mm(H) |
| Mounting size | VESA mounting: 100*100mm; Embedded mounting: 213*132mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 2.0kg/3.7kg(NET/Gross) |
| Color | Silver |
Ordering Information
| Type | Description |
|---|---|
| PPC-GS0851T | 12.1″/J1900/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0871TA | 12.1″/3855U/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0872TA | 12.1″/3865U/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0873TA | 12.1″/6th Gen I3/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0875TA | 12.1″/6th Gen I5/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0877TA | 12.1″/6th Gen I7/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0874TA | 12.1″/7th Gen I3/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0876TA | 12.1″/7th Gen I5/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
| PPC-GS0878TA | 12.1″/7th Gen I7/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
