PPC-GS1093T-5G
Features

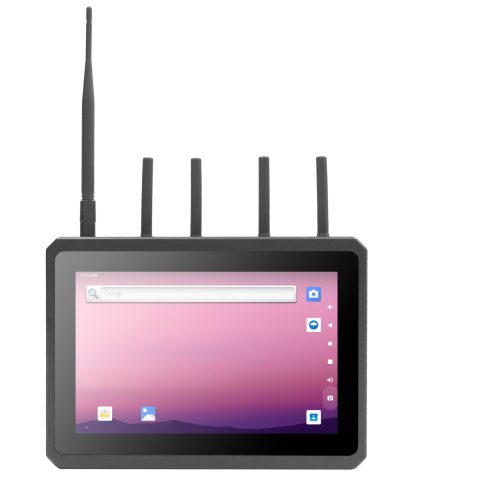

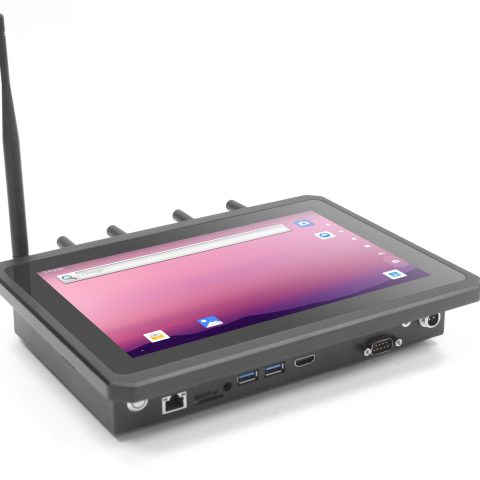

- 10.1" Industrial-grade display with PCAP multi-touch
- RK3399 SOC Cortex dual-core A72 2.0GHz
- Provide 2*USB, 4*RS232, 1*HD,1*Gigabit LAN
- 4G DDR3L,1* Realtek RTL8111H Gigabit Ethernet, support Wake on LAN/PXE

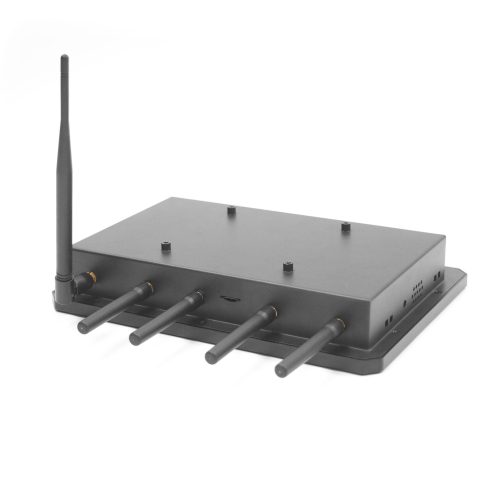

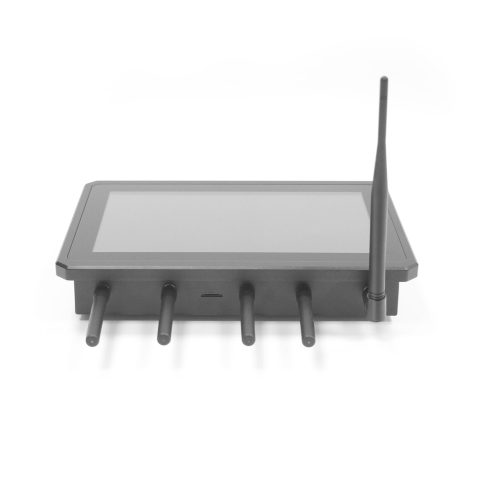

- Full Netcom 5G communication, dual-band WIFI+BT
- Fanless ultra-thin design, the protection level of the whole panel can reach IP65
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10.1 TFT LCD |
| Resolution | 1280*800 |
| Brightness | 350 cd/m2 |
| Contrast | 800:1 |
| Touch Screen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | RK3399 Dual Core A72 2.0GHz + Quad Core A53 1.6GHz Processor |
| RAM | 4GB DDR3L, |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) |
| Storage | Standard 16GB eMMC (optional 32GB/64GB) |
| Power | |
| Power Supply | 12V DC input (12/5A power adapter; 9-36V DC IN optional) |
| O/S | |
| O/S | Android 9 |

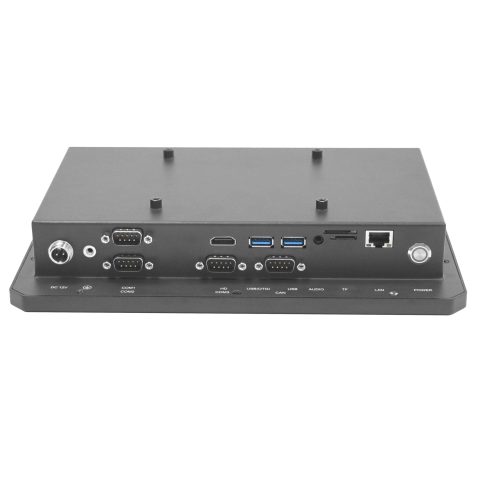

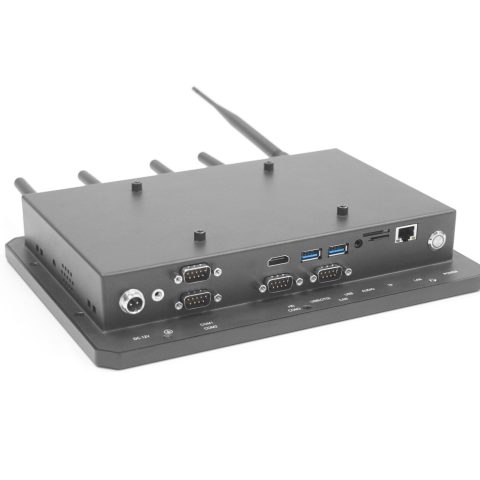

| I/O Port | |
| USB | 2*USB 3.0 |
| Ethernet | 1* RJ45 Gigabit Ethernet |
| COM | 4*RS232, 1*RS485 Optional |
| Audio | 1*Line-out, 1*Mic-in |
| Display | 1*HDMI |
| MiniPCIe | 1*Mini PCIe (WiFi/BT/3G/4G/5G Optional) |
| GPIO | 1* 4 in/4 out |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -10℃～60℃, with airflow |
| Storage Temperature | -20℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 268mm*195mm*46.7mm |
| Mounting size | VESA mounting: 100*100mm, Embedded installation: 244mm*151.2mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 2,14 kg / 2,9 kg (N.W./G.W.) |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| PPC-GS1093T-5G | 10.1″/RK339/5G/16G/2USB/4RS232/1Lan/1HDMI/12V5A |
Downloads
| This product has no downloads. |
