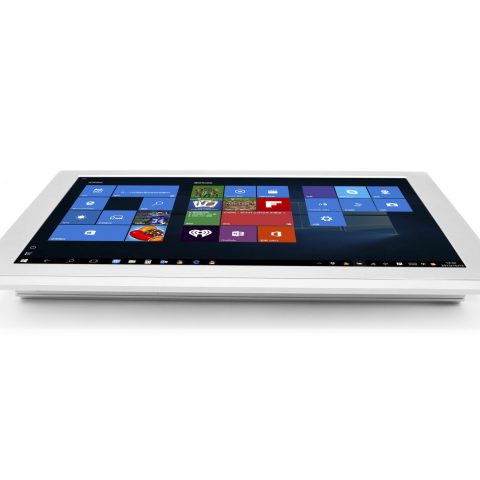

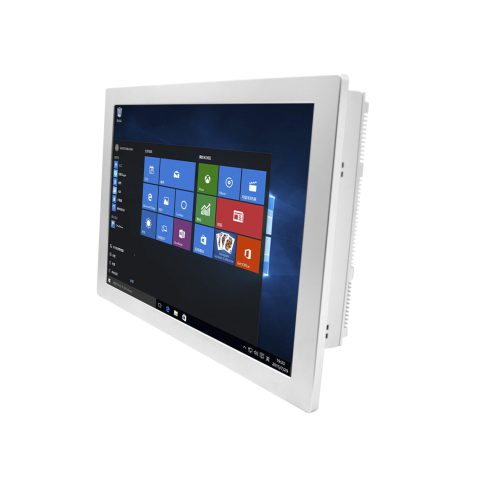

Display | |
---|---|
Screen | 19 TFT LCD |
Resolution | 1440*900 |
Brightness | 250 cd/m2 |
Contrast | 1000:1 |
Touchscreen | 5-wire Resistive touch screen |
Performance | |
Chipset | Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7 |
RAM | J1900 DDR3 2GB, up to 8GB; 3855U/3865U/Core i3/i5/i7 DDR4 2GB, up to 16GB |
Hardware Monitor | Monitors voltage, CPU, TEMP |
Watchdog Timer | 0-255 sec by software |
Storage | SSD 64GB, up to 512GB |
Power | |
Power Supply | 9-24V DC(9-36V optional) |
O/S | |
O/S | Windows 10, Linux(J1900 supports Windows 7) |

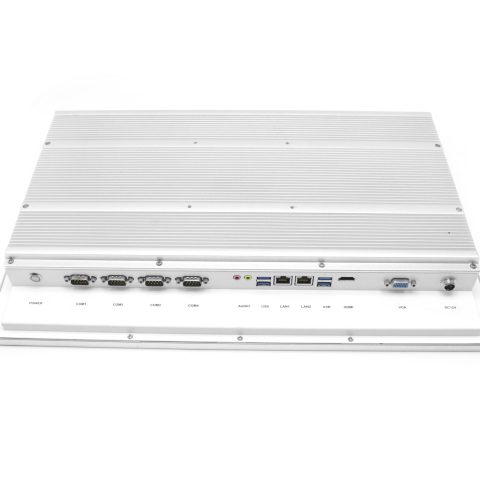

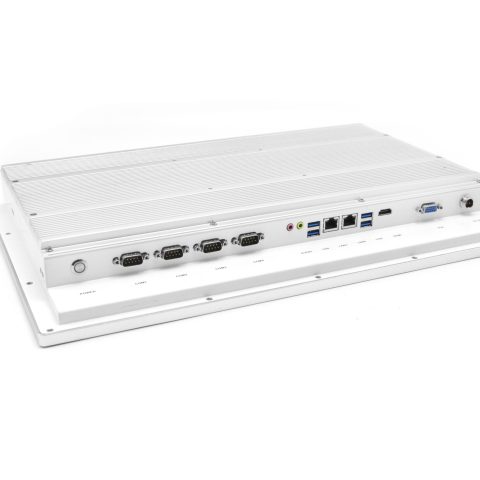

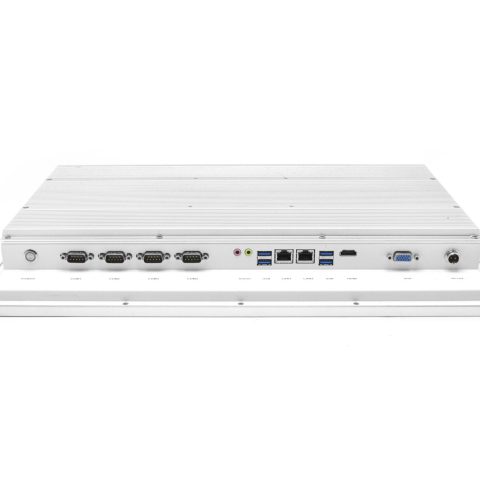

I/O Port | |
USB | J1900: 3*USB2.0+1*USB3.0; 3855U/3865U/Core 6th/7th: 4*USB 3.0 |
Ethernet | 2*1000M LAN |
COM | 4*RS232(1~2*RS485/RS422 optional) |
Audio | 1*Line-out+1*Mic |
Display | 1*VGA, 1*HDMI |
MiniPCIe | 1*MiniPCIe(optional WIFI/3G/4G) |
GPIO | 1*4 in/4 out(optional, occupy one COM port) |
Environmental | |
Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
Anti-shock | 10g acceleration, 11ms duration |
IP Level | Front panel IP65(optional) |
Reliability | MTBF≥5000h; MTTR≤0.5h |
Operating Temperature | -10℃~50℃ with air flow |
Storage Temperatur | -20℃~60℃ |
Operating Humidity | 95% @40℃, non-condensing |
Mechanical | |
Dimensions | 475mm(L)*308mm(W)*57mm(H) |
Mounting size | VESA mounting: 100*100mm; Embedded mounting: 444*248mm |
Material | Fanless High-strength and elegant Al-alloy panel |
Weight | 7.25kg/9.72kg(NET/Gross) |
Color | Silver |
Type | Description |
---|---|
PPC-GS1951T | 19″/J1900/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1971TA | 19″/3855U/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1972TA | 19″/3865U/2G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1973TA | 19″/6th Gen I3/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1975TA | 19″/6th Gen I5/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1977TA | 19″/6th Gen I7/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1974TA | 19″/7th Gen I3/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1976TA | 19″/7th Gen I5/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
PPC-GS1978TA | 19″/7th Gen I7/4G/64G/4USB/4RS232/2LAN/VGA/HDMI/12V5A |
