TPC-GS0882T
Features

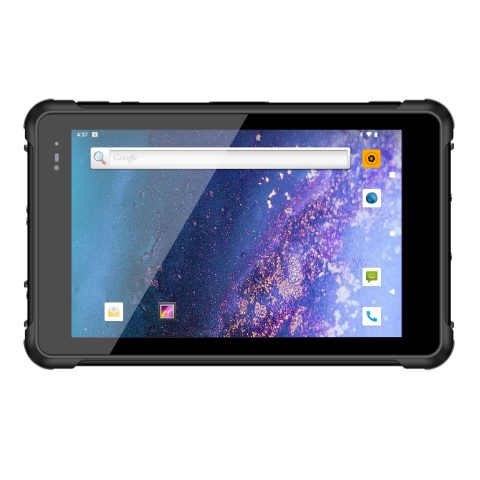

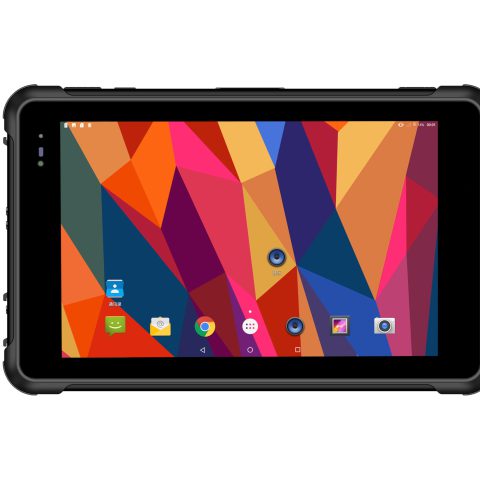

- 8" Android GMS industrial rugged tablet
- Chipset: MTK MT6769 Octa core CPU, 2GHz
- Dual channel WIFI5 802.11(a/b/g/n/ac)
- Bluetooth 5.0 (BLE)
- Optional: HF or UHF RFID / 1D / 2D / CAN / fingerprint reader
- Slim design, Rugged Mobile Terminal
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 8 IPS LCD Gorilla Glass 3rd Gen; Hardness: 7H |
| Resolution | 800*1280 |
| Brightness | 500 cd/m2 (800 cd/m2 Optional) |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | MTK MT6769 Octa-core CPU, 2GHZ |
| RAM | 6GB (2GB optional, MOQ) |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | 64 GB (32GB optional, MOQ) |
| Power | |
| Power Supply | 5V DC (Standard 5V/3A adapter) |
| Battery | 9800 mAh, 3.8V |
| O/S | |
| O/S | Android 12 |
| Camera | |
| Camera | 5 MP front, 13 MP back |
| Flash Light | |
| Flash Light | Support |
| I/O Port | |
| USB | 1*USB 2.0 Type A/ 1*USB 2.0 Type C |
| Ethernet | N/A |
| COM | N/A |
| WIFI | 802.11(a/b/g/n/ac), support 2.4GHZ+5GHZ |
| Audio | Speaker/MIC/3.5mm earphone |
| Display | 1*Mini HDMI |
| Bluetooth | 5.0 (BLE) class1 transmission distance: 10 m |
| GPS | MT6630 |
| SD/TF | 1* Micro SD |
| SIM | 1*SIM support 2G, 3G, 4G |
| DC_IN | 1*PWR_IN |
| Pogo Pin | 1*Pogo Pin (12 Pin) |
| Extension | Optional: HF RFID/UHF RFID/NFC/GPS/1D/2D/CAN/ U-BLOX GPS/Fingerprint reader |
| Accessoires | |
| Pen | Capacitive pen, Hand strap optional |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP67 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | Standard: 227mm(L)*142mm(W)*20mm(H); Optional: 227mm(L)*142mm(W)*29.5mm(H) |
| Mounting size | VESA mounting 100 x 100 mm |
| Material | ABS+PC; TPU |
| Weight | 0.8KG/1.2KG (NW/GW) |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| TPC-GS0882T | Standard version, with 500 nits |
| TPC-GS0882TH | High brightness version, with 800 nits |
