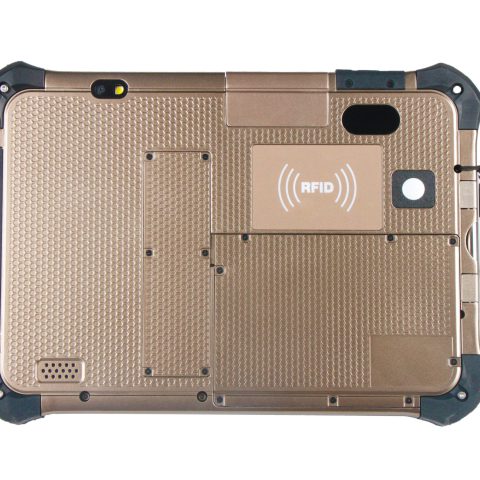

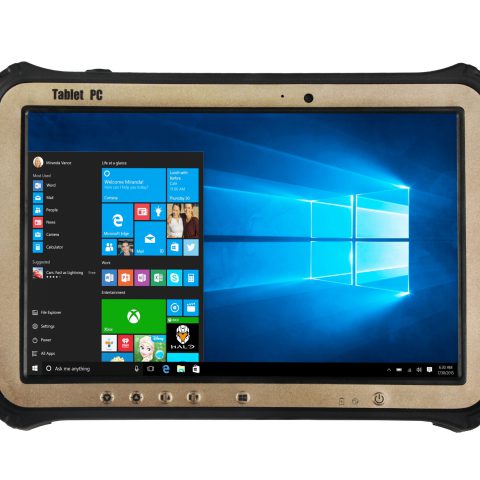

TPC-GS1051HT V6
Features
- 10.1" Multi-Point capacitive touch screen
- Chipset: Intel® Celeron® N2940 processor
- Support WiFi and BT 4.0
- Onboard 4GB DDR3 RAM
- 4G LTE/GPS/NFC/RFID/2D Scanner optional
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10.1 TFT LCD |
| Resolution | 1280*800 |
| Brightness | 350 cd/m2 |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Bay Trail N2940 1.83GHz |
| RAM | Onboard 4GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD:64GB, up to 512GB |
| Power | |
| Power Supply | 12V DC (12V Adapter) |
| O/S | |
| O/S | Windows 7/10/ Linux |
| I/O Port | |
| USB | 1*USB 3.0 + 1*USB 2. |
| Ethernet | 1*GbE LAN RJ45 1000M |
| COM | 1*DB9 (2*RS232 or 1*RS485/RS422 optional) |
| Audio | Built-in Speaker/Mic |
| Display | 1*mini HDMI |
| SD/TF | 1*TF card slot |
| SIM | 1*SIM card slot |
| Extension | Optional:3G /4G/GPS/RFID/2D Scanner |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP65 |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～60℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 275mm(L)*195mm(W)*28mm(H) |
| Material | Fanless High-strength and elegant Magnesium alloy casing |
| Weight | 1.45kg/1.7kg(NET/Gross) |
| Color | Coffee Gold |
| Accessoires | |

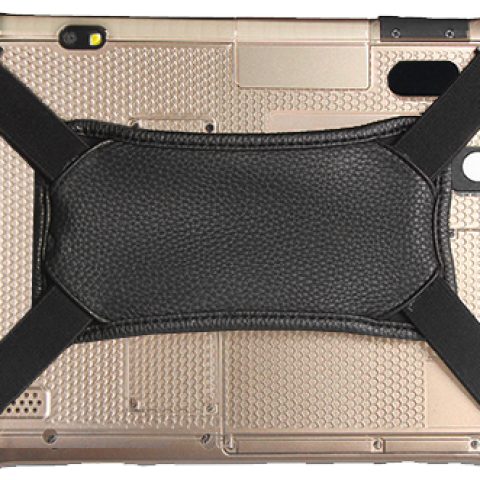

| Pen | Capacitive pen(Hand strap, shoulder strap optional) |
Ordering Information
| This product has no ordering information. |
Downloads
| This product has no downloads. |
