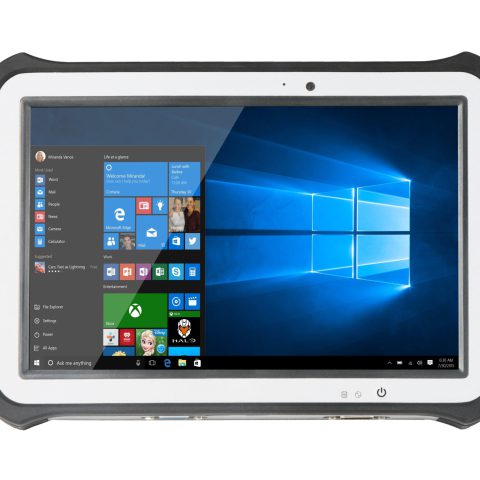

TPC-GS1051TA
Features
- 10" industrial screen, Multi-Point Capacitive touch Screen
- Chipset: Intel® Celeron J1900 processor
- Provide 4*USB+2*COM
- Fanless High-strength and elegant Al-alloy panel
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10.1 TFT LCD |
| Resolution | 1280*800 |
| Brightness | 350 cd/m2 |
| Contrast | 1000:1 |
| Touchscreen | Multi-Point Capacitive touch Screen |
| Performance | |
| Chipset | Intel® Celeron J1900 |
| RAM | DDR3L 2GB, up to 8GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD 64GB, up to 512GB |
| Power | |
| Power Supply | 9-24V DC (12V Adapter) |
| O/S | |
| O/S | Windows 7/10, Linux |
| I/O Port | |
| USB | 1*USB 3.0+ 3*USB 2.0 |
| Ethernet | 2*GbE LAN RJ45 1000M |
| COM | 2*RS232(4*RS232 optional) |
| Audio | 1*Audio-out |
| Display | 1*HDMI(1*VGA optional, occupy one DB9) |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -10℃～60℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 275.2mm(L)*195.2mm(W)*36mm(H) |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 1.47kg/2.24kg(NET/Gross) |
| Color | Silver |
