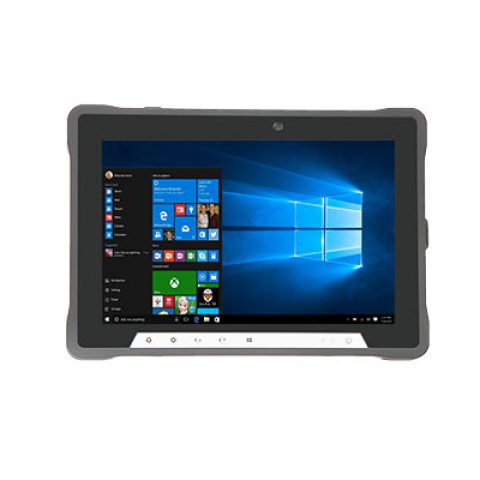

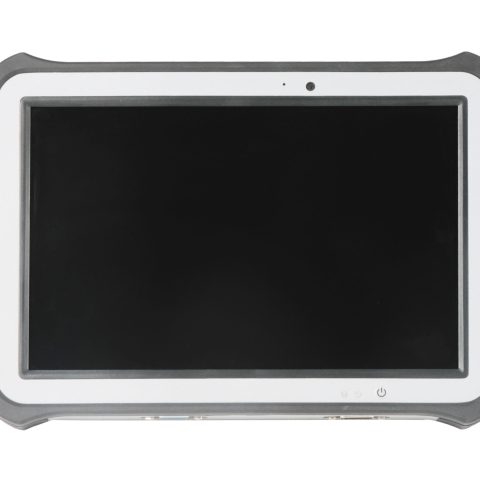

TPC-GS1073HT
Features
- 10.1" Multi-Point capacitive touch screen
- Chipset: Intel® Kabylake Core i3 processor (i5/i7 optional)
- Support WiFi and BT 4.0 (3G/4G module optional)
- Provide 2USB+2COM port
- GPS/RFID/NFC/2D/Fingerprint optional
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10.1 TFT LCD |
| Resolution | 1920*1080 |
| Brightness | 400 cd/m2 |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Kabylake Core i3 (i5/i7 optional) |
| RAM | Onboard 8GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD: 64GB, up to 512GB |
| Power | |
| Power Supply | 19V DC (19V Adapter) |
| Battery | Li-ion Battery: 4000 mAh |
| O/S | |
| O/S | Windows 10/ Linux |
| Camera | |
| Camera | Front 2.0 MP / Rear 5.0 MP |

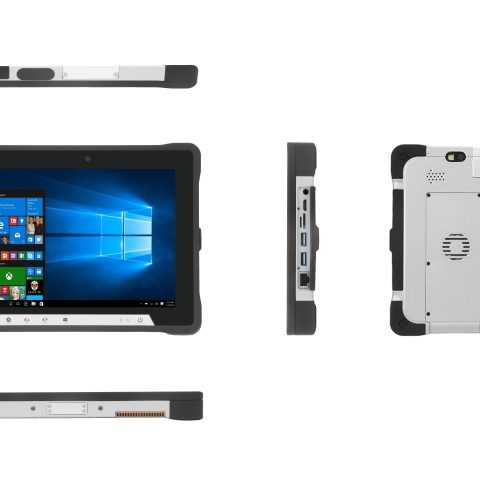

| I/O Port | |
| USB | 1*USB 3.0 + 1*USB 2.0 |
| Ethernet | 1*GbE LAN RJ45 1000M |
| COM | 1*DB9 (for 1-2*RS232 or 1*RS485/RS422) |
| WIFI | Support |
| Audio | Built-in Speaker/Mic |
| Display | 1*Mini HDMI |
| Bluetooth | 4.0 |
| SD/TF | 1*TF card slot |
| SIM | 1*SIM card slot |
| Extension | 3G/4G/GPS/RFID/2D/Fingerprint optional |
| Accessoires | |
| Pen | Capacitive pen, Hand / strap optional |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP65 |
| Reliability | MTBF≥5000h; MTTR≤0.5h |
| Operating Temperature | -20℃～60℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 269mm(L)*189mm(W)*28mm(H) |
| Material | Fanless High-strength and elegant magnesium alloy panel |
| Weight | 1.24kg/2.55kg(NET/Gross) |
| Color | Sliver |
