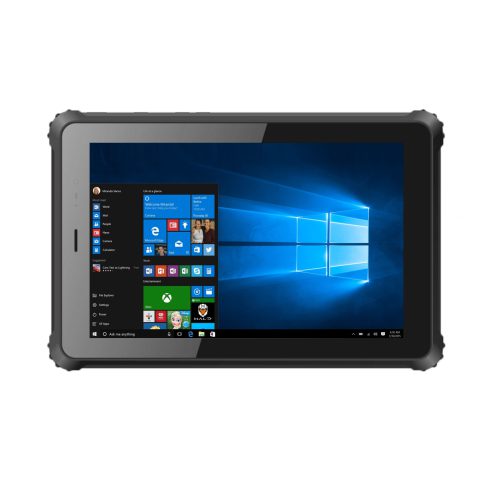

TPC-GS1081
Features
- 10″ Windows 10 industrial rugged tablet
- Chipset: Intel Z8350 CPU, Quad core, 1,44-1,92 GHz
- WiFi (2.4GHz+5GHz)/BT 4.2 (BLE)/GPS/RJ45/RS232/RFID/NFC/4G
- Optional: HF or UHF RFID / 1D / 2D / CAN / fingerprint reader
- Slim design, Rugged Mobile Terminal
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10″ IPS LCD Gorilla Glass 3rd Gen; Hardness: 7H |
| Resolution | 800*1280, optional 1200*1920 |
| Brightness | 500 cd/m2 (1000 cd/m2 optional) |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel Z8350 CPU, Quad core, 1,44 GHz-1,92 GHZ |
| RAM | 4GB (2GB optional MOQ) |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | 64 GB EMMC (32GB optional MOQ) |
| Power | |
| Power Supply | 5V DC(Standard 5V/3A adapter) |
| Battery | exchangeable 10000 mAh, 3.8V |
| O/S | |
| O/S | Windows 10 Home, Pro, IOT Enterprise |
| Camera | |
| Camera | front 2 MP, rear 5 MP auto focus |
| Flash Light | |
| Flash Light | Support |
| I/O Port | |
| USB | 1*USB 2.0 Type A/ 1*USB 2.0 Type C |
| Ethernet | 1x RJ45 100 Mbit/s |
| COM | 1x RS232 |
| WIFI | 802.11(a/b/g/n/ac), support 2.4GHZ+5GHZ |
| Audio | Speaker/MIC/3.5mm earphone |
| Display | 1*Mini HDMI |
| Bluetooth | 4.1 (BLE) class1 transmission distance: 10 m |
| GPS | U-Blox M7N |
| SD/TF | 1*Micro SD |
| SIM | 1*SIM 2G/3G/4G |
| DC_IN | 1*PWR_IN |
| Pogo Pin | 1*Pogo Pin（12 Pin） |
| Extension | Optional: HF RFID/UHF RFID/NFC/GPS/1D/2D/CAN/ U-BLOX GPS/Fingerprint reader |
| Accessoires | |
| Pen | Capacitive pen, Hand strap optional |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP 67 |
| Reliability | MTBF≥50000 h; MTTR≤0.5 h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | Standard: 274mm(L)*181mm(W)*23mm(H); Optional: 274mm(L)*181mm(W)*32.5mm(H) |
| Mounting size | VESA mounting 200 x 100 mm |
| Material | ABS+PC; TPU |
| Weight | 1,15 kg N.W, 1,70 G.W. |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| TPC-GS1081 | 10″ Rugged Tablet Windows 10 |
| TPC-GS1081H | 10″ Rugged Tablet Windows 10, 1000 nits high bright screen |
| TPC-GS1081HR | 10″ Rugged Tablet Windows 10, 1920*1200 resolution |
Downloads
| This product has no downloads. |
