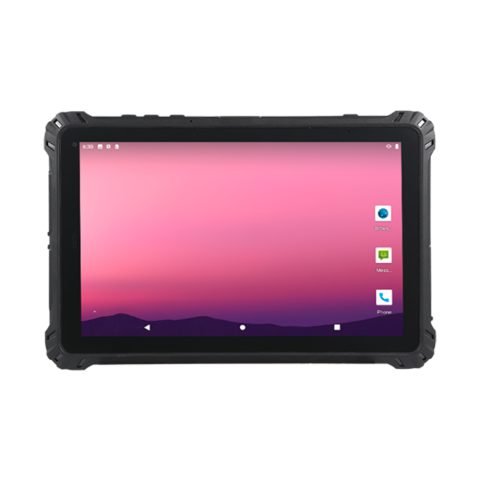

TPC-GS109M3A (5G)
Features
- 10″ Industrial display, high brightness screen optional
- Chipset: MTK 6877, ARM® Cortex-A78 2.4 GHz + 6 ARM® Cortex-A55 2.0 GHz
- Dual channel WiFi (2.4GHZ+5GHZ)
- 1.2M Drop resistance
- Slim design, Rugged Mobile Terminal
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 10″ IPS LCD, Gorilla Glass 3rd Gen; Hardness: 7H |
| Resolution | 800*1280 |
| Brightness | 450 cd/m2 (1000 cd/m2 optional) |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | MTK 6877, ARM® Cortex-A78 2.4 GHz + 6 ARM® Cortex-A55 2.0 GHz |
| RAM | Onboard 6 GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | 128 GB EMMC |
| Power | |
| Power Supply | 5V DC (Standard 5V/2A adapter) |
| Battery | 9800 mAh, 3.8V |
| O/S | |
| O/S | Android 13 |
| Camera | |
| Camera | front 8 MP + rear 20 MP Auto-Focus |
| Flash Light | |
| Flash Light | Support |
| I/O Port | |
| USB | 1*USB 2.0 Type A/ 1*USB 2.0 Type C |
| Ethernet | N/A |
| COM | N/A |
| WIFI | 802.11(a/b/g/n/ac/ax), support 2.4GHZ+5GHZ |
| Audio | Single speaker/MIC/3.5mm earphone |
| Display | 1*Mini HDMI |
| Bluetooth | 5.2 (BLE) class1 transmission distance: 10 m |
| GPS | GPS L1CA+L5/Beidou B1I+B2a/Glonass L1OF/Galileo E1+E5a/QZSS L1CA+L5/NaviC |
| SD/TF | 1*Micro SD |
| SIM | 1*SIM with 2G / 3G / 4G / 5G support |
| DC_IN | 1*PWR_IN |
| Pogo Pin | 1*Pogo Pin（12 Pin） |
| Extension | Optional: HF RFID/UHF RFID/NFC/GPS/1D/2D/CAN/ U-BLOX GPS/Fingerprint reader |
| Accessoires | |
| Pen | Capacitive pen, Hand strap optional |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | IP 67 |
| Reliability | MTBF≥50000 h; MTTR≤0.5 h |
| Operating Temperature | -10℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | Standard: 272mm(L)*180mm(W)*21mm(H); optional with UHF: 274mm(L)*181mm(W)*32.5mm(H) |
| Mounting size | VESA mounting 200 x 100 mm |
| Material | ABS+PC; TPU |
| Weight | 1,25 kg N.W., 1,8 kg G.W. |
| Color | Black |
Ordering Information
| Type | Description |
|---|---|
| TPC-GS109M3A | Standard version, with 450 nits touch screen |
| TPC-GS109M3AH | High brightness version, with 1000 nits touch screen |
| TPC-GS109M3AHR | FHD 1920×1200, High brightness version, with 800 nits touch screen |
Downloads
| This product has no downloads. |
