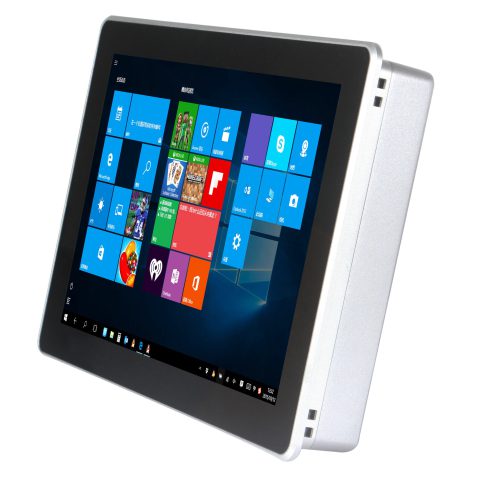

TQ12-51AC/TQ12-7XAC
Features
- 12.1" industrial display, Multi-Point Capacitive touch Screen / Front Panel IP65
- Chipset: Intel® Celeron J1900/3855U/ 3865U/Core I3/I5/I7
- Provide 4* USB+6* COM
- Standard DDR3/DDR4 RAM, up to 16GB
- Provide 2* GbE LAN RJ45 1000M
- Fanless High-strength and elegant Al-alloy panel
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 12.1 TFT LCD |
| Resolution | 1280*800 |
| Brightness | 350 cd/m2 |
| Contrast | 800:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Celeron J1900/3855/3856/Core I3/I5/I7 |
| RAM | J1900: 2GB DDR3, up to 8GB; 3855U/3865U/Core i3/i5/i7: 2GB DDR4, up to 16GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD 64GB, up to 512GB |
| Power | |
| Power Supply | 9-24V DC(Standard 12V/5A adaptor, 9-36V DC optional) |
| O/S | |
| O/S | Windows 10, Linux (J1900 support Win7) |

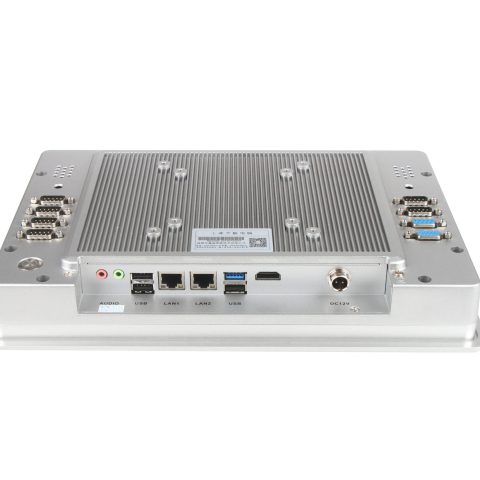

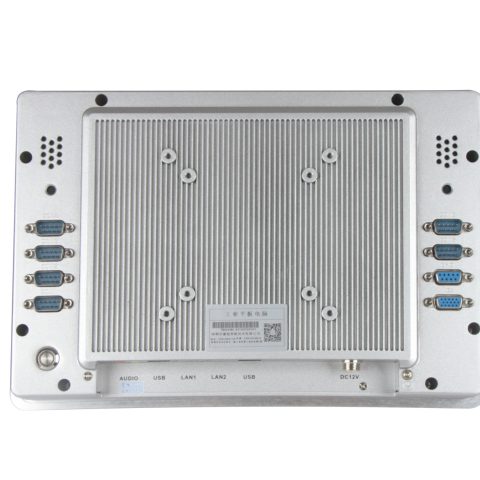

| I/O Port | |
| USB | J1900: 3*USB2.0+1*USB3.0; 3855U/3865U/Core 6th/7th: 4*USB 3.0 |
| Ethernet | 2* GbE LAN RJ45 1000M |
| COM | 6*RS232(1~2*RS485/RS422 optional) |
| Audio | 1*Line-out+1*Mic |
| Display | 1*VGA, 1*HDMI |
| MiniPCIe | 1* Mini PCIe(WIFI/BT/3G/4G optional) |
| GPIO | 1*4 in/4 out |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | 0℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 308.6mm(L)*210.8mm(W)*52.5mm(H) |
| Mounting size | VESA mounting: 75*75mm/100*100mm; Embedded mounting: 298mm*201mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 2.12kg/3.12kg(NET/Gross) |
| Color | Silver |
Ordering Information
| Type | Description |
|---|---|
| TQ12-51AC | 12.1″/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-71AC | 12.1″/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-72AC | 12.1″/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-73AC | 12.1″/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-75AC | 12.1″/6th Gen/I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-77AC | 12.1″/6th Gen/I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-74AC | 12.1″/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-76AC | 12.1″/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ12-78AC | 12.1″/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
Downloads
| This product has no downloads. |
