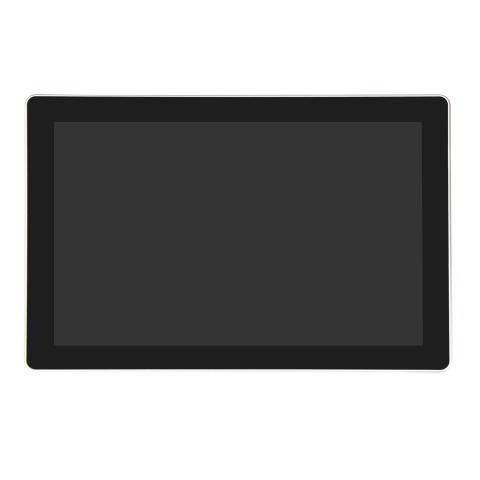

TQ19-51AC/TQ19-7XAC
Features
- 19.5" industrial display, Multi-Point Capacitive touch Screen / Front Panel IP65
- Chipset: Intel®Celeron J1900/3855U/ 3865U/Core I3/I5/I7
- Provide 4*USB+6*COM
- Standard DDR3/DDR4 RAM, up to 16GB
- Provide 2*GbE LAN RJ45 1000M
- Fanless High-strength and elegant Al-alloy panel
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 19.5 TFT LCD |
| Resolution | 1440*900 |
| Brightness | 250 cd/m2 |
| Contrast | 1000:1 |
| Touchscreen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7 |
| RAM | J1900 Standard 2GB DDR3, up to 8GB; 3855U/3865U/Core i3/i5/i7 Standard 2GB DDR4, up to 16GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | 0-255 sec by software |
| Storage | SSD 64GB up to 512GB |
| Power | |
| Power Supply | 9-24V DC (Standard 12V/5A adaptor, 9-36V DC optional) |
| O/S | |
| O/S | Windows 10、Linux (J1900 support Win7) |

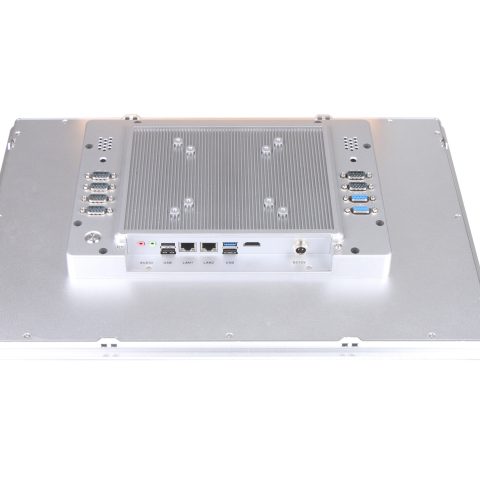

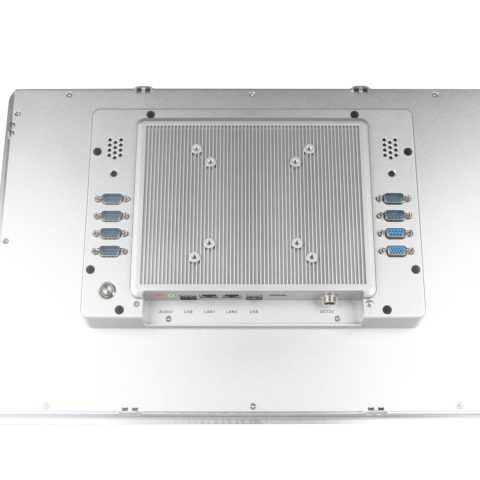

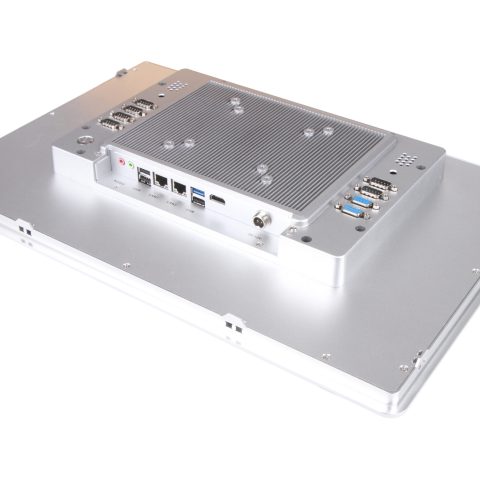

| I/O Port | |
| USB | J1900:3*USB2.0+1*USB3.0; 3855U/3865U/Core 6th/7th: 4*USB 3.0 |
| Ethernet | 2* GbE LAN RJ45 1000M |
| COM | 6* RS232 (1~2* RS485/RS422 optional) |
| Audio | 1* Line-out+1* Mic |
| Display | 1* VGA, 1* HDMI |
| MiniPCIe | 1* Mini PCIe (WIFI/BT/3G/4G optional) |
| GPIO | 1* 4 in/4 out |
| Environmental | |
| Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | 0℃～50℃ with air flow |
| Storage Temperature | -30℃～70℃ |
| Operating Humidit | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 472.2mm(L)*319.2mm(W)*53.3mm(H) |
| Mounting size | VESA mounting: 75*75mm/100*100mm; Embedded mounting: 462mm*309mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 4.48kg / 5.98kg (NET/Gross) |
| Color | Silver |
Ordering Information
| Type | Description |
|---|---|
| TQ19-51AC | 19.5″/J1900/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-71AC | 19.5″/3855U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-72AC | 19.5″/3865U/2G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-73AC | 19.5″/6th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-75AC | 19.5″/6th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-77AC | 19.5″/6th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-74AC | 19.5″/7th Gen I3/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-76AC | 19.5″/7th Gen I5/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
| TQ19-78AC | 19.5″/7th Gen I7/4G/64G/4USB/6RS232/2LAN/VGA/HDMI/12V5A |
