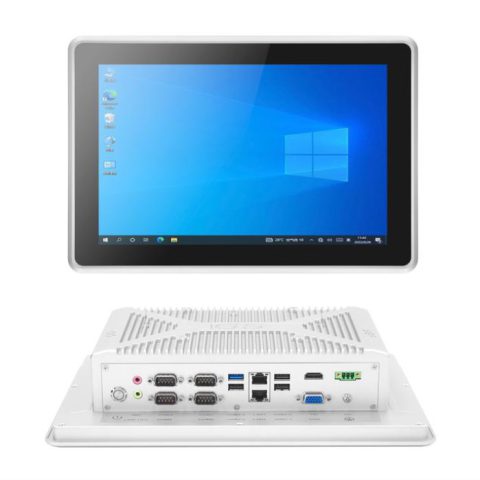

TR120-51A
Features
- Intel® Bay Trail J1900 2.0GHz processor

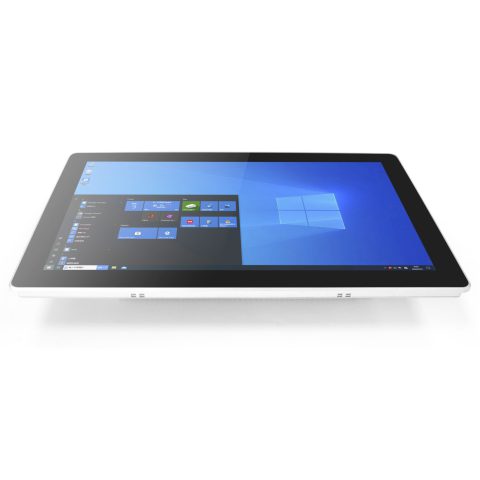

- 12" Industrial display, multi-point capacitive touch screen
- Provide 1*USB3.0, 3*USB2.0, 4*RS232, 1*HD Display interface, 1*VGA
- 4GB DDR3L Memory, maximum support 8GB
- 2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
- Fanless design Panel Protection Level can reach IP65
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 12″ TFT LCD |
| Resolution | 1280*800 |
| Brightness | 400 cd/m2 |
| Contrast | 1000:1 |
| Touch Screen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Bay Trail J1900 quad-core four-thread processor |
| RAM | 4GB DDR3L, up to 8GB |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) |
| Storage | Standard M.2, 128GB, up to 512GB |
| Power | |
| Power Supply | 9-32V wide voltage input, standard 12V/5A adapter (optional adapter for external expansion POE module) |
| O/S | |
| O/S | Windows7/10、Ubuntu |

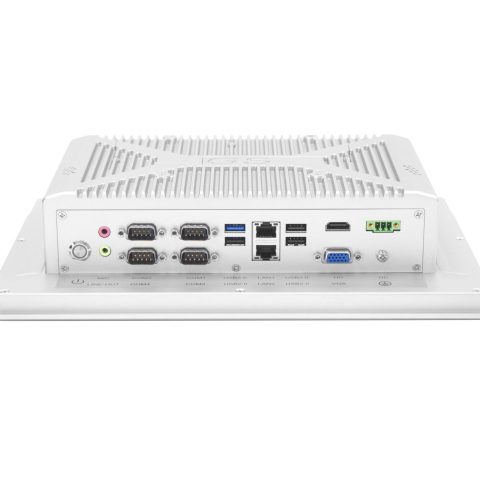

| I/O Port | |
| USB | 1*USB3.0 +3*USB2.0 |
| Ethernet | 2* RJ45 Gigabit Ethernet |
| COM | 4*RS232 (2*RS485 optional) |
| Audio | 1*Line-out, 1*Mic-in |
| Display | 1*HD+1*VGA |
| Mini PCIE | 1*Mini PCIe (WiFi/BT/3G/4G/5G Optional) |
| GPIO | 1* 4 in/4 out |
| Environmental | |
| Anti-vibration | 5-17Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃, with airflow |
| Storage Temperature | -20℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 315.8*218*70mm |
| Mounting size | VESA mounting: 100*100mm Embedded installation: 302.1*204.3mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 2.80 kg (N.W) |
| Color | silver |
Ordering Information
| Type | Description |
|---|---|
| TR120-51A | 12″/J1900/4G/128G/4USB/4RS232/2Lan/1HDMI/12V5A |
