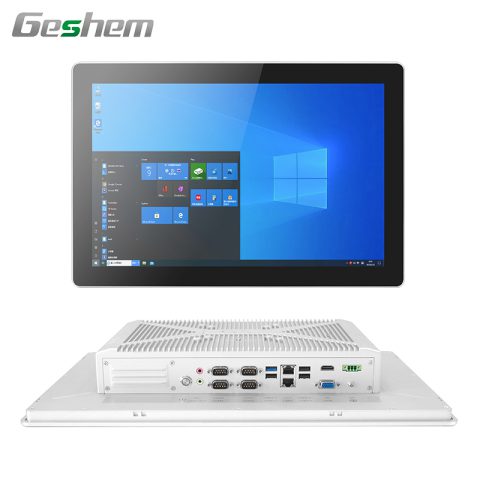

TR190-85A
Features
- Intel® Core™ 8th i3/i5/i7 processor

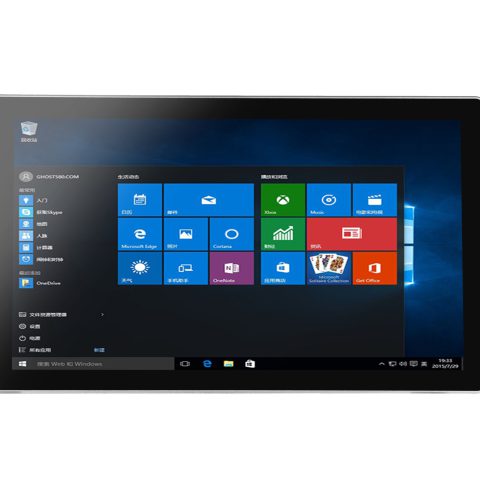

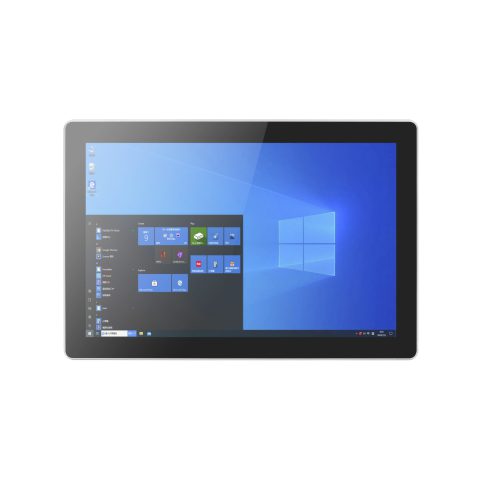

- 19" Industrial display, multi-point capacitive touch screen
- 3*USB3.0, 1*USB2.0, 4*RS232, 1*HD 1.4A, support 1080P@60Hz output, 1*VGA
- Onboard 8GB LPDDR3 memory
- 2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
- Fanless design Panel Protection Level can reach IP65
Specifications
Ordering Information
Downloads
Specifications
| Display | |
|---|---|
| Screen | 19″ LCD |
| Resolution | 1440*900 |
| Brightness | 250 cd/m2 |
| Contrast | 1000:1 |
| Touch Screen | Multi-Point Capacitive touch |
| Performance | |
| Chipset | Intel® Core™ i5-8265u (optional i3-8145U /i7-8565U) |
| RAM | Board 8GB LPDDR3 memory |
| Hardware Monitor | Monitors voltage, CPU, TEMP |
| Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) |
| Storage | Standard M.2, 128GB, up to 512GB |
| Power | |
| Power Supply | 12V~ 28V wide pressure input (1*3pin phoenix terminal), standard 19V/4.74A adapter (extended POE module optional adapter) |
| O/S | |
| O/S | Windows10、Linux |

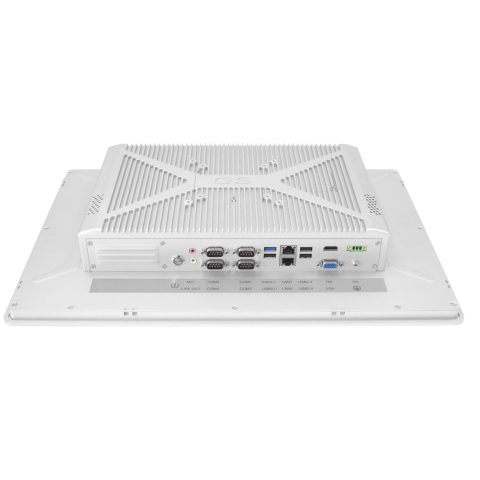

| I/O Port | |
| USB | 3*USB3.0 +1*USB2.0 |
| Ethernet | 2* RJ45 Gigabit Ethernet |
| COM | 4*RS232 (2*RS485 optional) |
| Audio | 1*Line-out, 1*Mic-in |
| Display | 1*HD+1*VGA |
| Mini PCIE | 1*mini pcie (wifi/bt/4G/5G optional) |
| GPIO | 1*GPIO (2in/2out) |
| Environmental | |
| Anti-vibration | 5-17Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| IP Level | Front panel IP65 |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Operating Temperature | -10℃～50℃, with airflow |
| Storage Temperature | -20℃～70℃ |
| Operating Humidity | 95% @40℃, non-condensing |
| Mechanical | |
| Dimensions | 472*320*70mm |
| Mounting size | VESA mounting: 100*100mm Embedded installation: 459.49*306.4mm |
| Material | Fanless High-strength and elegant Al-alloy panel |
| Weight | 6.00kg |
| Color | silver |
Ordering Information
| Type | Description |
|---|---|
| TR190-85A | 19″/i5/4G/128G/4USB/4RS232/2Lan/1HDMI/12V5A |
Downloads
| This product has no downloads. |
